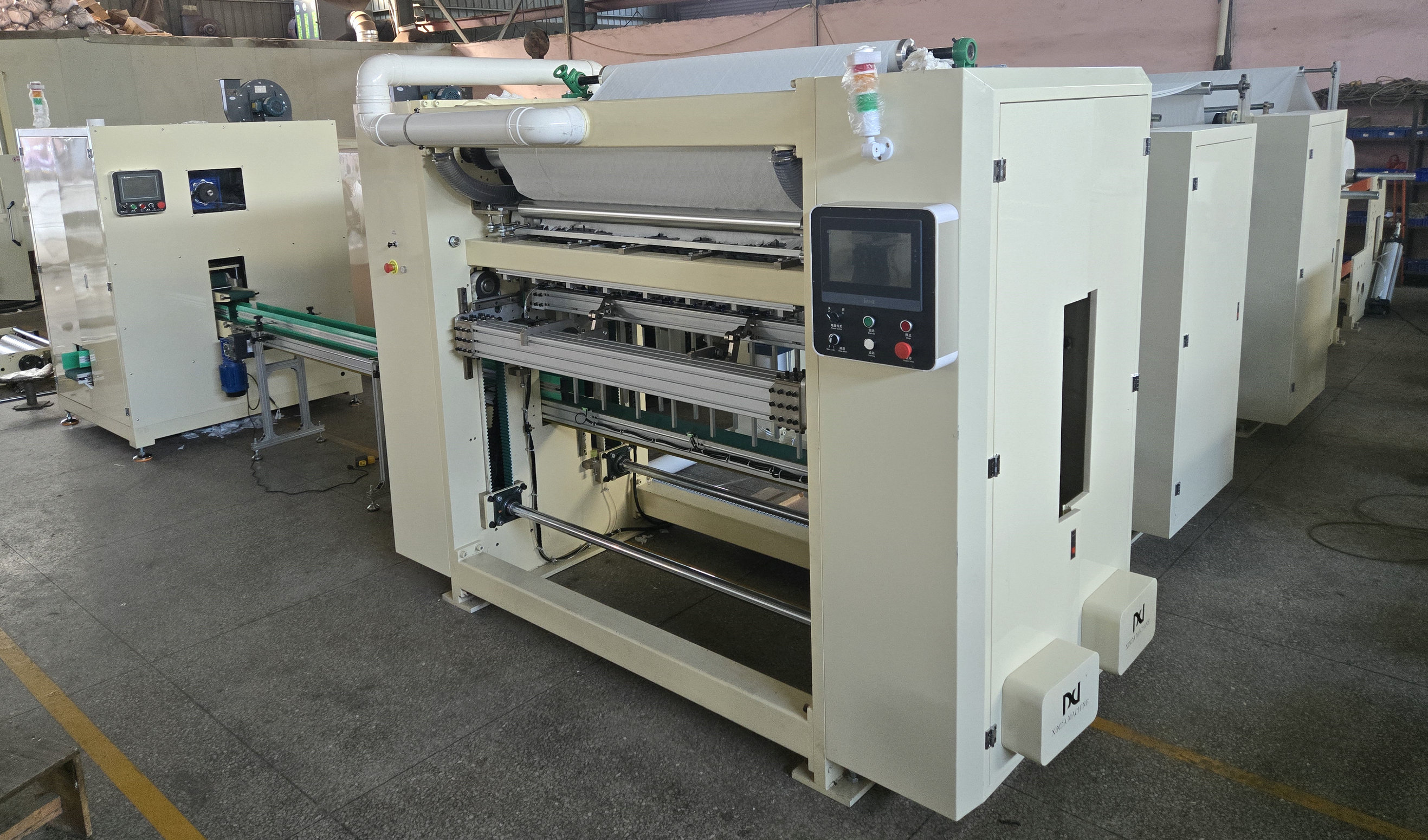

CIL-AS-288V non-stop V-fold Gluing lamination Hand towel paper / Facial tissue machine

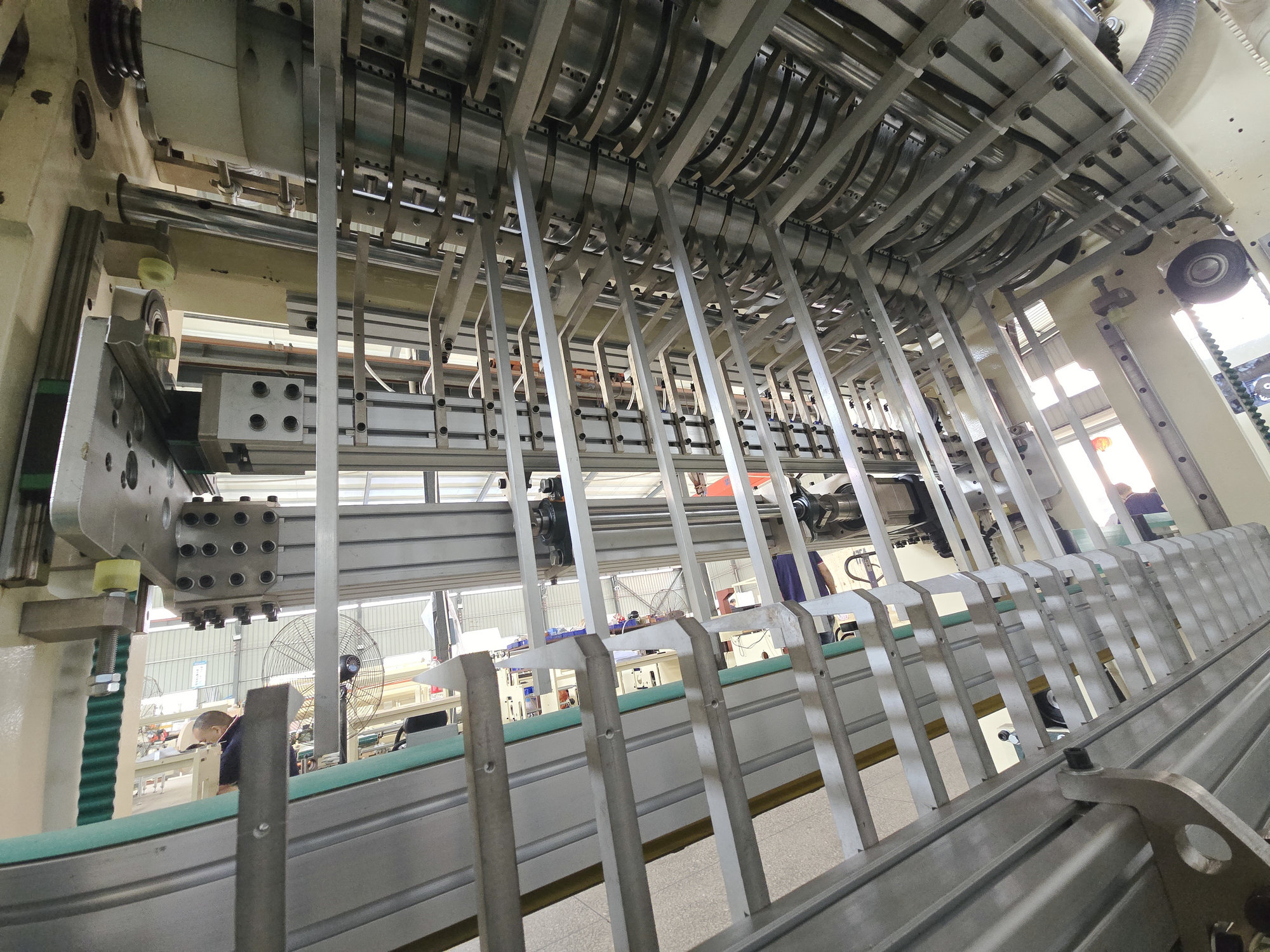

This hand towels facial tissue paper machine adopts a large screen true color human-machine interface operation, PLC programming control, and independent language environment operation with one click switching between Chinese and English; The automatic stacking system adopts "INVT" full servo drive control (three sets of servos) to ensure accurate stacking and stable stacking speed of 8-10 strips; Host, raw paper unwinding frequency conversion independent drive synchronization
- Overview
- Recommended Products
Equipment Technical Parameters
1. Folding host part：
1.1 Folding roller surface size：1250/1350/1450/1550mm
1.2 Raw paper quantity：33-47g/m2 hand towels paper/ 12~16 g/m2 facial tissue paper
1.3 Product unfolding size：190×200±2mm X150~200(Customer needs to specify size)
1.4 Size after folding：95±2mm X150~200(Customer needs to specify size)

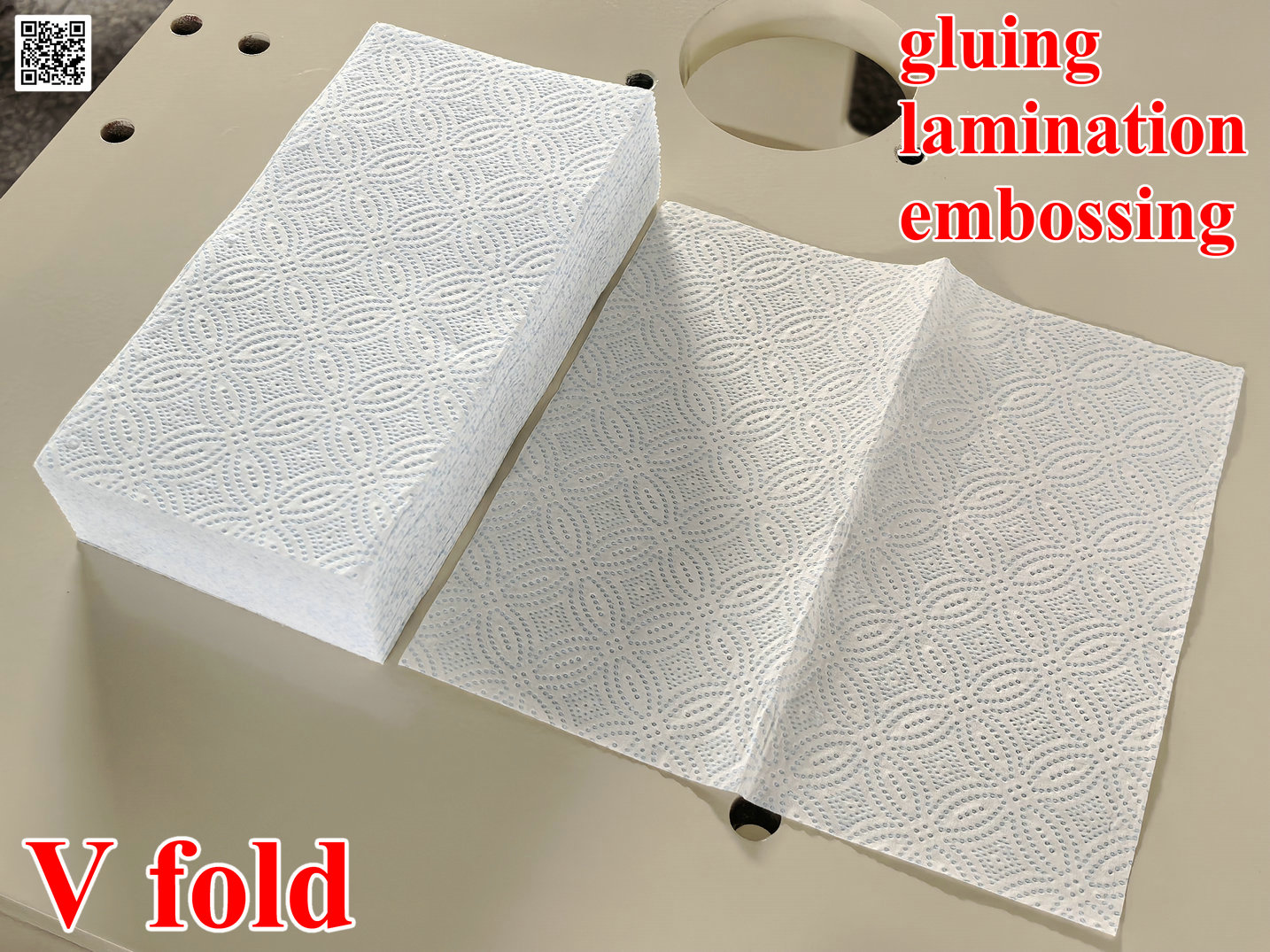

1.5 Folding type：V folding
1.6 Stacking speed：8~10bar（800~1000pcs/min/line）

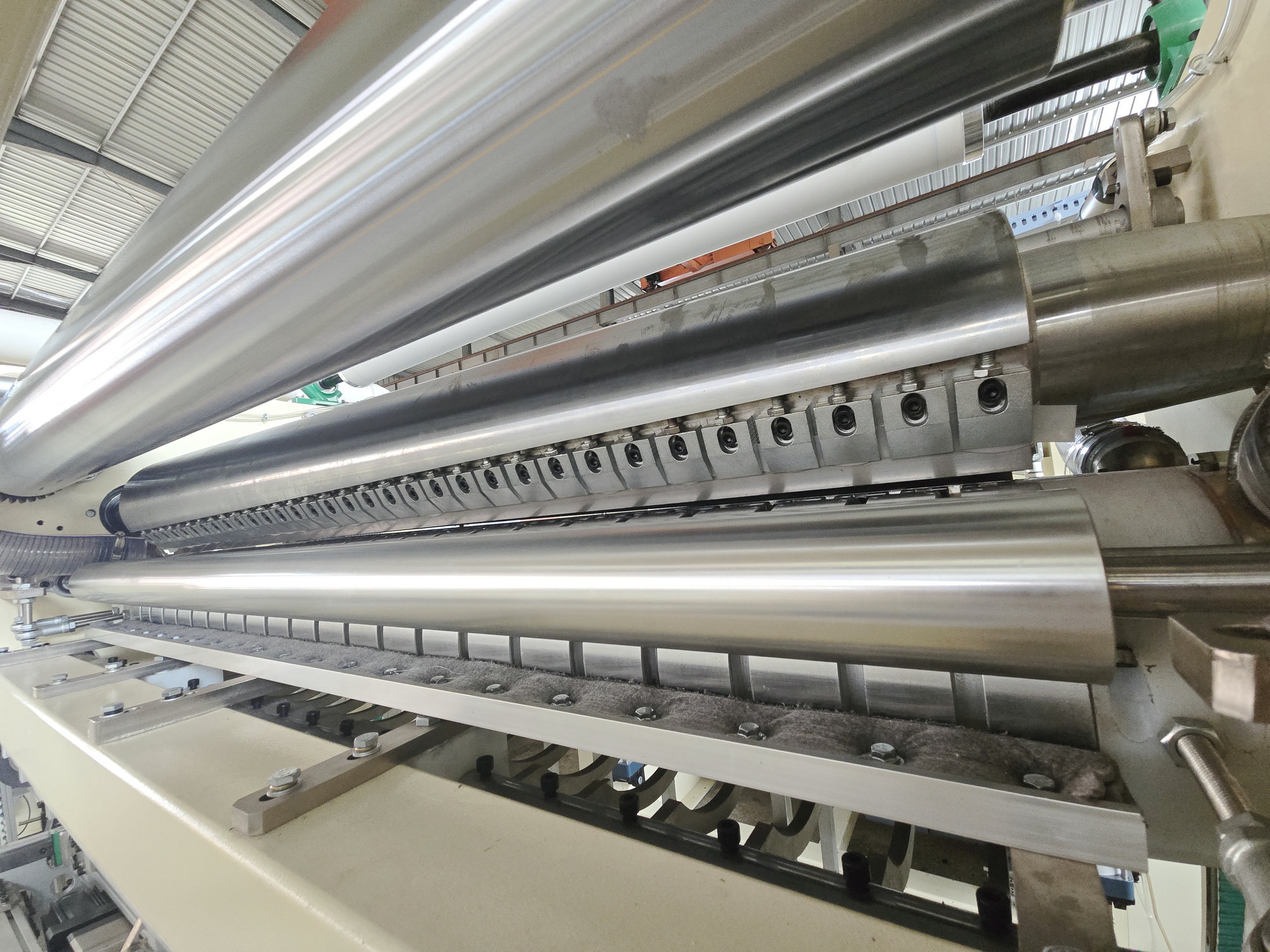

1.7 The folding roller adopts a dual valve structure and is made of MC self-lubricating nylon material
1.8 Double roller fixed blade horizontal paper cutting
1.9 Overall wallboard structure
2. Embossing part:（option）
2.1 Integrated wall board structure
2.2 steel to steel embossing rollers for full & edge embossing

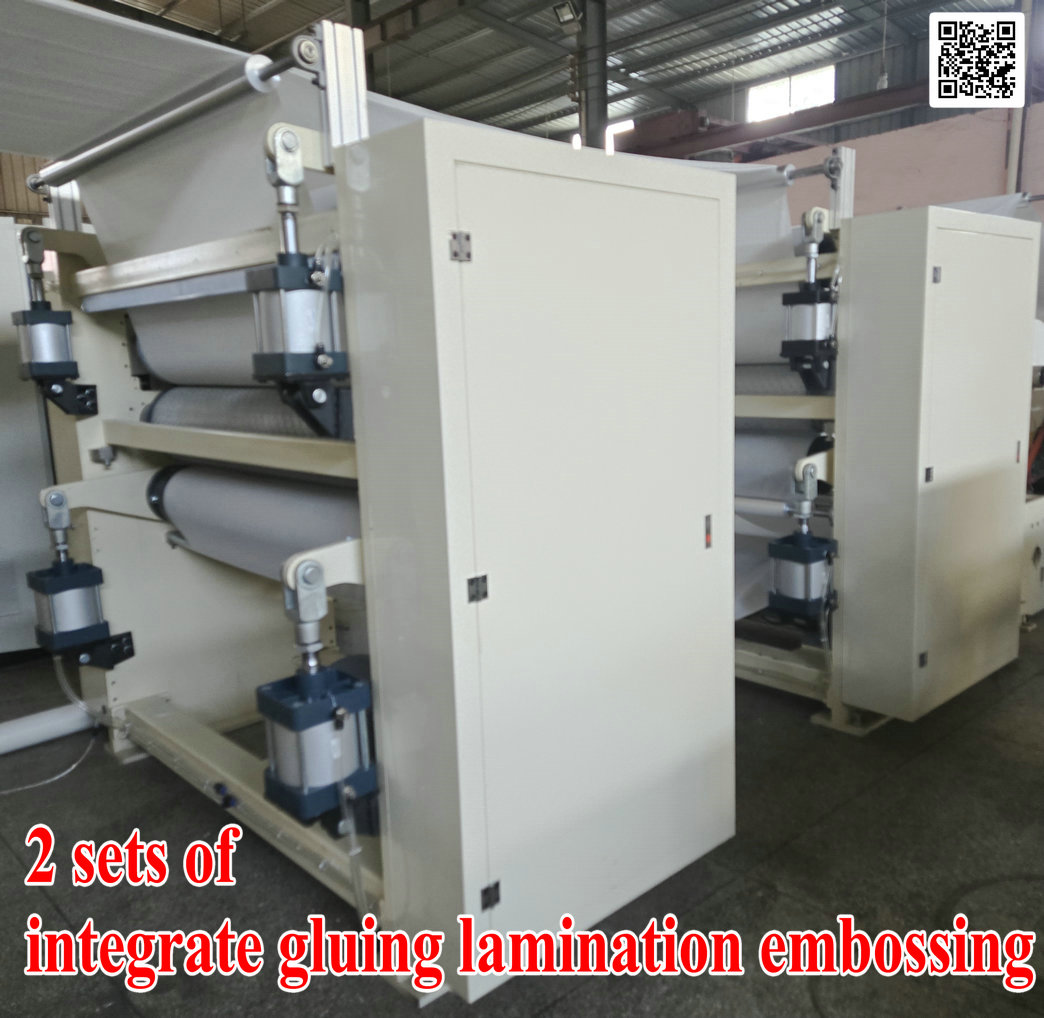

2.3 integrate gluing lamination embossing(steel to rubber rollers)
3. Unreeling stand part：
3.1 Maximum width of raw paper：1300/1400/1500mm
3.2 Maximum diameter of raw paper：1200mm
3.3 Paper inner diameter：76mm
3.4 Pneumatic paper Unreeling stand
3.5 Paper tension adjustment device: independent electric control
4. Control part：
4.1 Way of control：Automatic stacking is controlled by the "INVT" servo system (three sets); Host frequency conversion speed control. The whole machine is controlled by the "INVT" PLC and comes with a "INVT" touch screen
4.2 Counting control method: touch screen setting, automatic stacking
4.3 The machine is equipped with jog and emergency stop buttons
