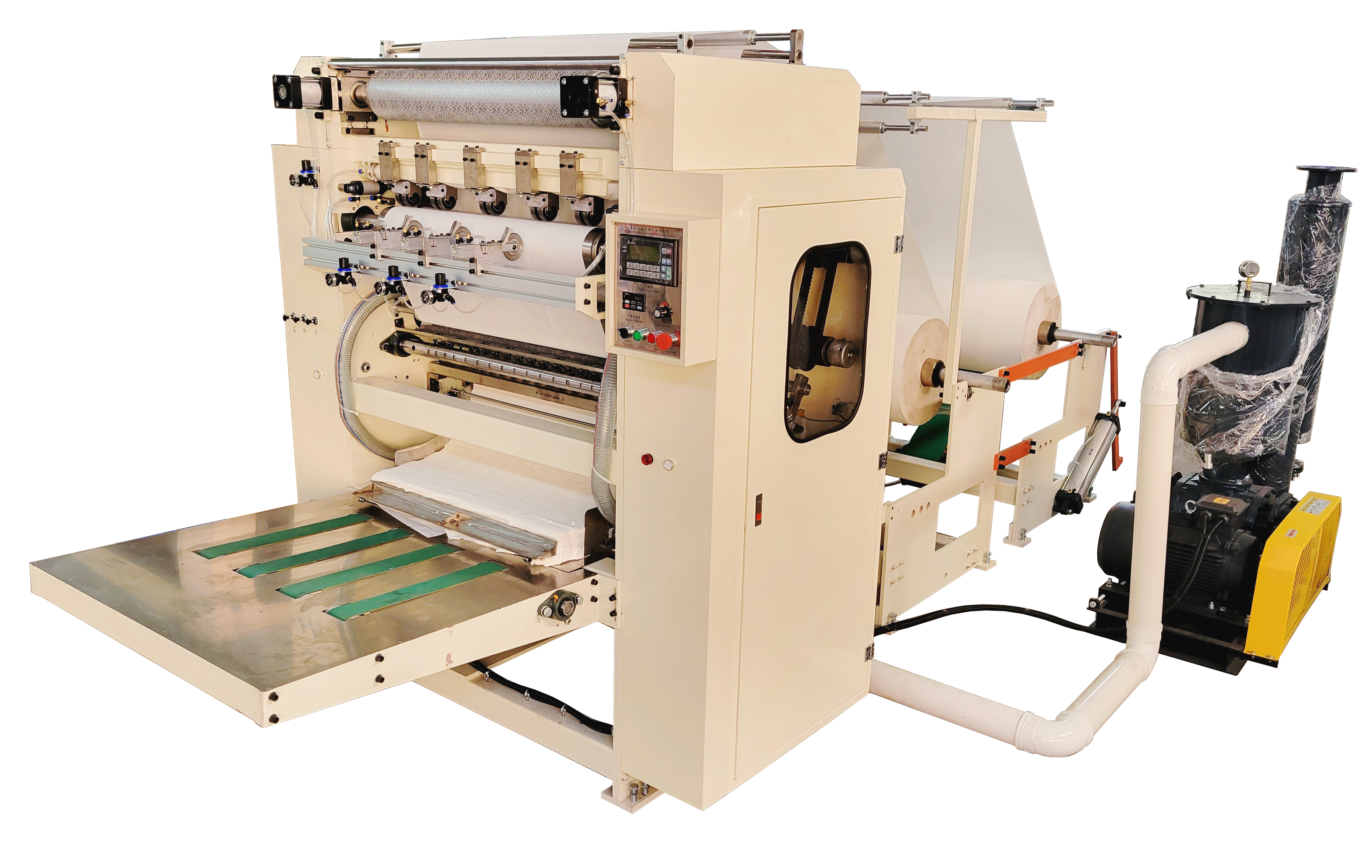

CIL-FT-20A Full-Automatic Box-Drawing Facial Tissue Machine
1.Production speed: 60–100 m/min per lane, 800–1000 pcs/min per line.
2.Production open size (mm): 200 (L) × 140–200 (W) (adjustable).
3.Production folded size (mm): 100 (L) × 140–200 (W) (adjustable).
4.Power: 5.5–11.5 kW (380V, 50Hz).
- Overview
- Function and Features
- Technical Data
- After-Sales Service
- Specification of Raw Material
- Recommended Products
This model is designed to produce "link type" box-drawing facial tissue, meaning each sheet is linked together; when you draw the top tissue, the head of the next sheet comes out of the box. This machine can produce either embossed or non-embossed tissue, according to customer selection. It features a tight structure, easy operation, stable performance, and elaborate design.
We can manufacture the machine with 2 lines, 3 lines, 4 lines, 5 lines, 6 lines, 7 lines, 8 lines, or up to 14 lines.
This machine can be equipped with a single-color printing or double-color printing unit.
1.Counts automatically and outputs in order.
2.Adopts a screw turning knife to cut and vacuum absorption to fold.
3.Uses stepless speed adjustment to accommodate different raw paper tensions.
4.Electric control for easy operation.
5.Can be equipped with an embossing unit.
6.Wide range of production widths available for selection.
1.Production speed: 60–100 m/min per lane, 800–1000 pcs/min per line.
2.Production open size (mm): 200 (L) × 140–200 (W) (adjustable).
3.Production folded size (mm): 100 (L) × 140–200 (W) (adjustable).
4.Power: 5.5–11.5 kW (380V, 50Hz).
1.One-year maintenance service. Any damaged spare parts can be exchanged directly from our company (excluding easily damaged items). After one year, we continue to provide technical and quality support for the long term.
2.Easily damaged items are included with the machine.
1.Width of raw paper: 400–2940 mm.
2.Diameter of raw paper: 700–1000 mm.
3.Thickness of raw paper: 14–18 g/m².
4.Diameter of paper core: 67 mm.
