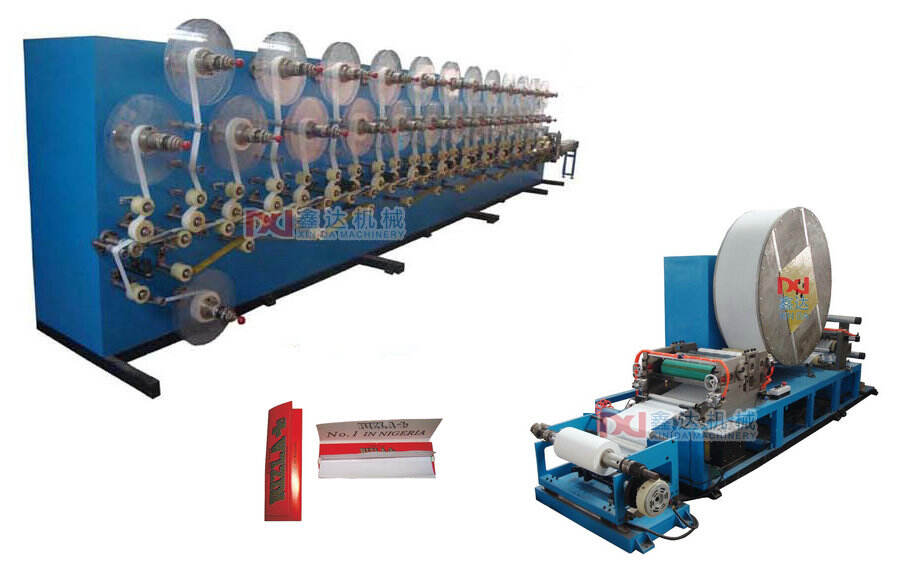

CIL-QQ-285 Full-Automatic Drawing Cigarette Paper Machine
1. Production capacity : 15m/min. 16460boxs（25sheets）/8hour
2. Power of glue machine: 2.2KW (main frame frequency control )
3. Power of folding machine: 2.2KW(main frame frequency control )
4. The Max. plies for folding: 25 plies.
5. Weight: 10 tons
- Overview
- Main Configurations
- Main Technical Parameter
- Recommended Products
This model is designed to produce “link type” drawing cigarette paper , that’s mean, each sheet is link together. When you draw one sheet ,the end of next sheet will come out the packaging at the same time. The machine is controlled by PLC , touch screen frequency control. High automatic degree, strict structure , low invoice, less waste, safety and simple operation.
 |
 |

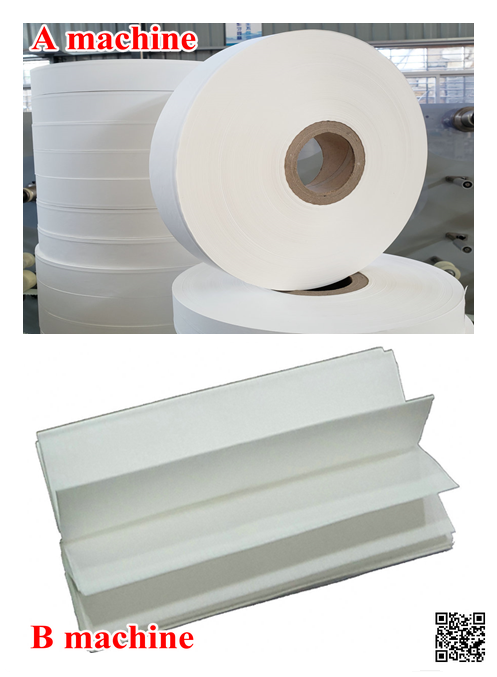

| Full-Automatic Drawing Cigarette Paper Machine | Finished Products |

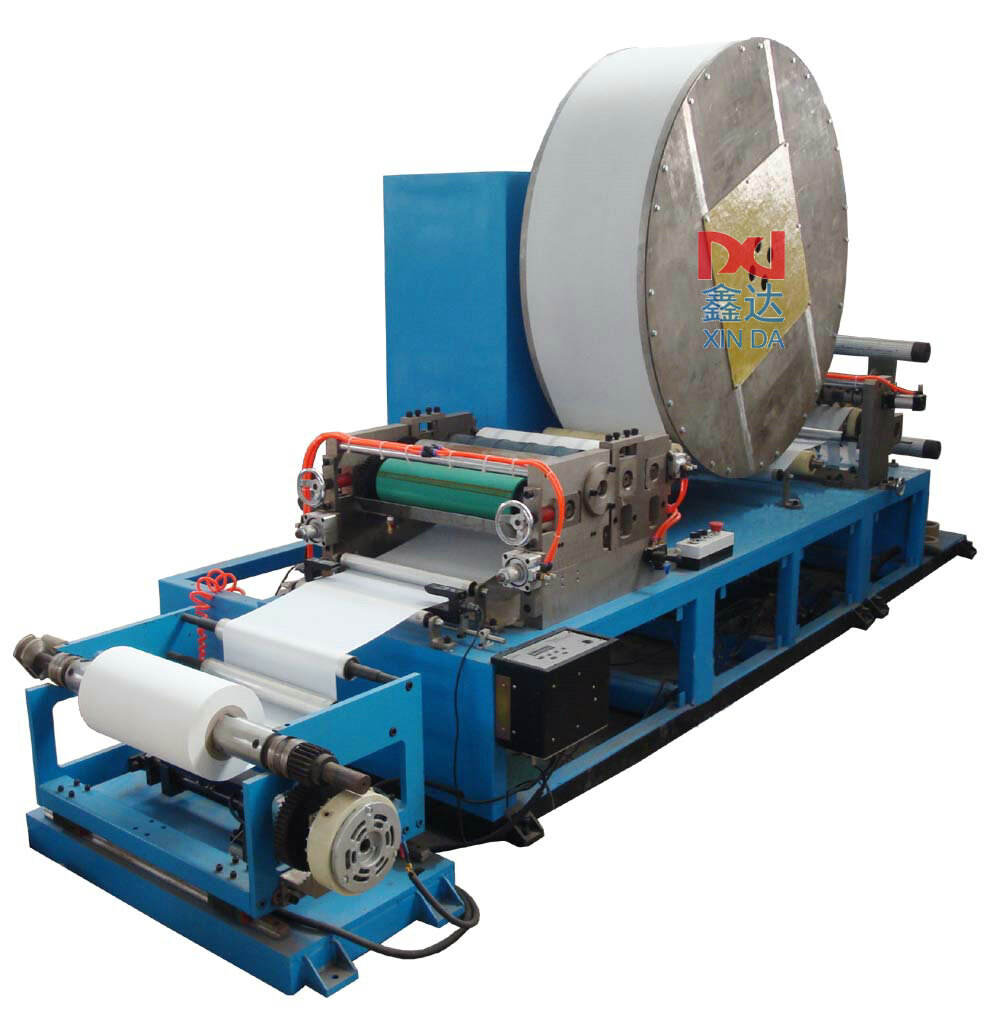

A. Automatic spray glue, slitting machine , one set.

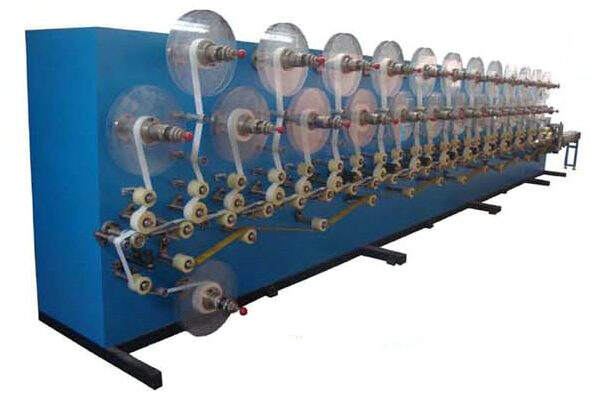

B. Automatic folding, cutting machine, one set.
1. Production capacity : 15m/min. 16460boxs（25sheets）/8hour
2. Power of glue machine: 2.2KW (main frame frequency control )
3. Power of folding machine: 2.2KW(main frame frequency control )
4. The Max. plies for folding: 25 plies.
5. Weight: 10 tons
6. 25 rolls of Raw material
7. 3 size of finished product (width:55-35mm length:60-100mm)
