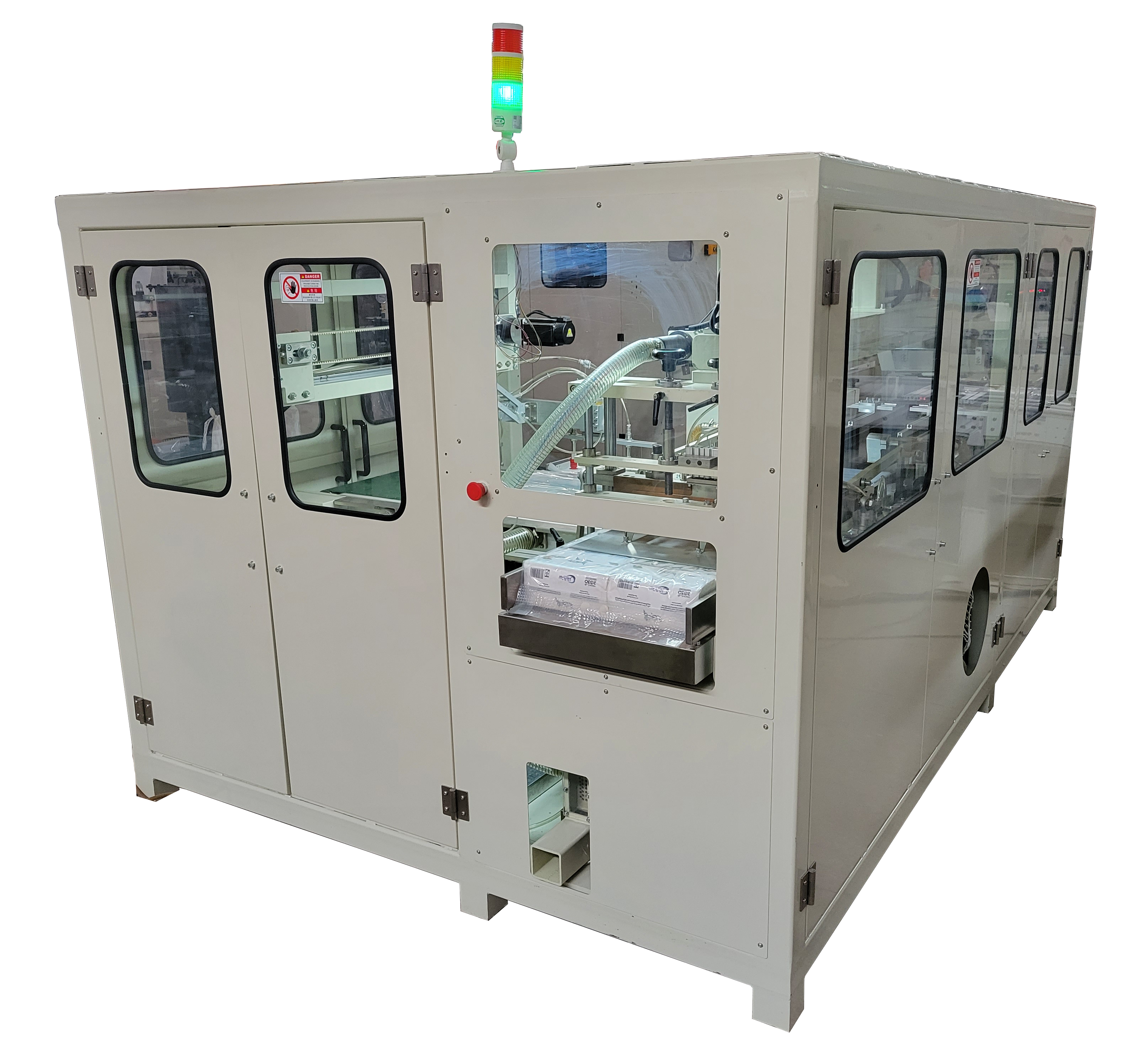

CIL-FT-27 Full Automatic Tissue Middle Packing Machine
1.Full automatic run. High speed.Suitable for packing bundling rolls(6,8,10 rolls in one bag).
2.Can be connected with log saw or single roll wrapping machine.
3.Servo system,PLC controlled.
4.Auto feeding, auto adjustment.Adopting high quality sensors.
- Overview
- Technical Parameters
- Recommended Products
1.Full automatic run. High speed.Suitable for packing bundling rolls(6,8,10 rolls in one bag).
2.Can be connected with log saw or single roll wrapping machine.
3.Servo system,PLC controlled.
4.Auto feeding, auto adjustment.Adopting high quality sensors.
5.Operated by color touch screen display.
6.Emergency stop/ pause function, safety alarm system, air and electric power protection system.
7.Adopting constant temperature sealing and cutting system.
 |
| Tissue Middle |
|
Model |
full automatic tissue middle packing machine |
|
Capacity |
20bundling bag/min |
|
Power supply |
380V 50HZ |
|
Air supply |
0.5-0.7MPA(Supplied by user) |
|
Power |
17KW |
|
Feeding mode |
Full automatic 2 lanes feeding system |
|
Suitable for packing |
Bundling toilet rolls |
|
Bag size/Rolls per bag |
L450*W(130-400)*H(80-105) mm 6、8、10 rolls/bundling bag |
|
Bundling bag mode |
Prefabricated bag with air-bleed hole |
|
Bundling bag material |
PE, thickness:：≥0.05mm |
|
Bundling bag store |
40mm Two bag storage |
|
Bundling bag storing quantity |
≤500 pcs |
|
Machine weight |
3500kg |
|
Machine size |
L6800*W3700*H1600 mm |
