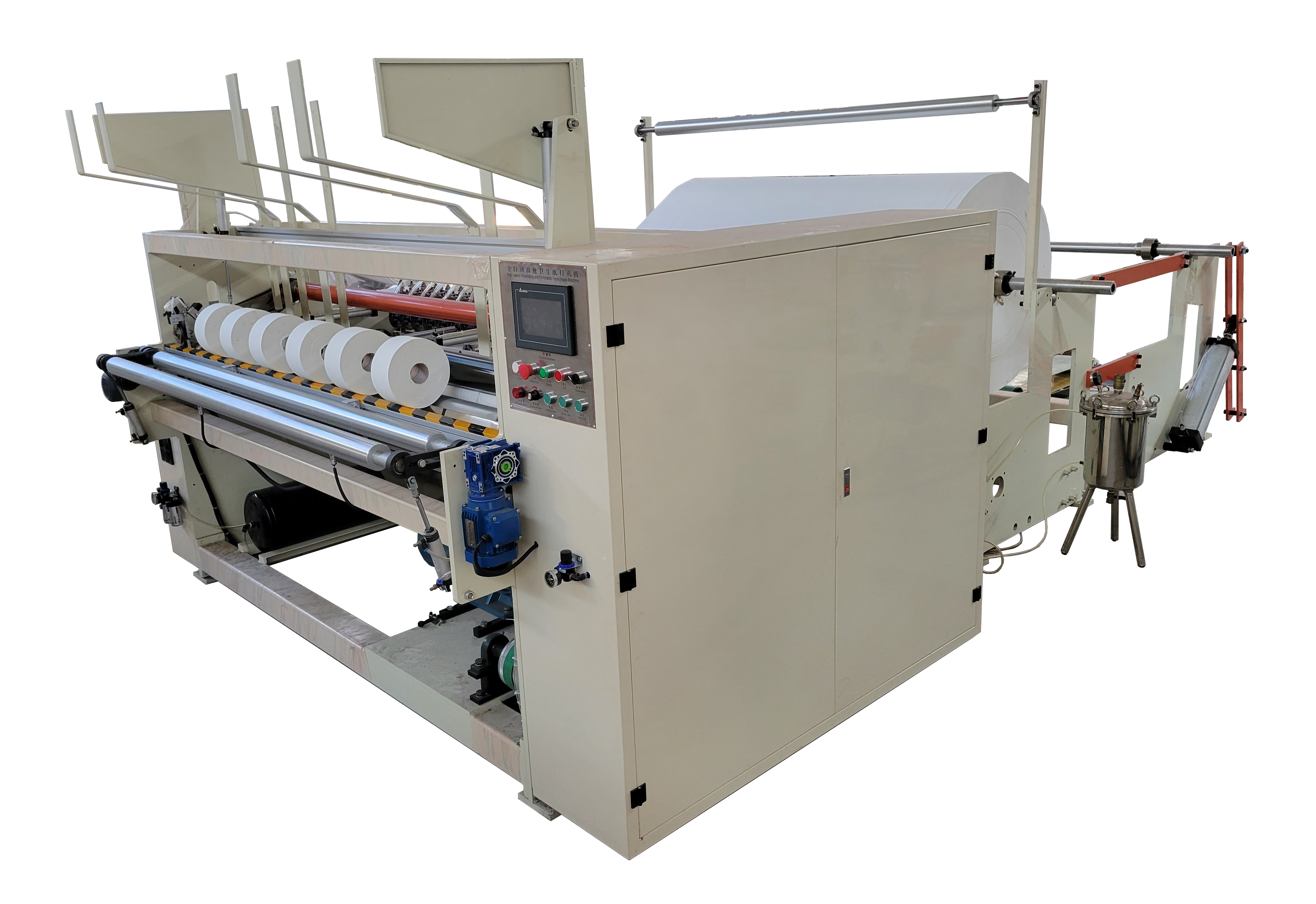

CIL-WW-D Automatic Small Bobbin (Maxi Roll) Toilet Paper Rewinding Perforation Machine
The CIL-WW-D perforates and cuts raw paper into various sizes, producing neat, orderly finished products with equal tension. Featuring a compact design (8.4 m²), stable operation, and low energy consumption, it operates at 180-250 m/min and is fully adjustable. It is the ideal equipment for paper manufacturing and processing plants.
- Overview
- Features
- Recommended Products
CIL-WW-D this equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 180-250m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.
This equipment can process raw paper of 1.2m -2.75m in width. There are two production model, machine with cutting function, can produce both ordinary toilet paper and small bobbin. High production efficiency .This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, cutting unit，rolling unit, electricity control and trimming spray system. The production process is : unreeling —→ embossing —→perforating—→cutting —→furl—→trimming spray
 |
 |

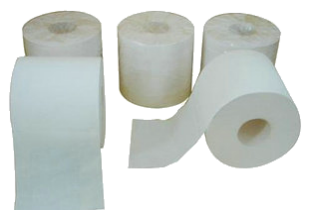

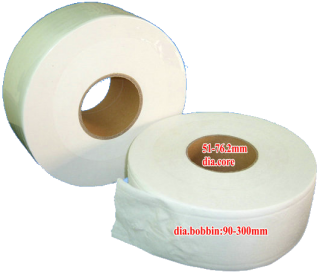

| Paper Roll | Paper Roll |
1.PLC (computer) control production, degree of full-automatic of production process is high, the function of machine is complete, and production efficiency is high.
2.Load and change the core, spray glue, seal can be done without stop the machine. When changing the core, the machine will low the speed and up the speed automatically.
3.When change the core to rewind, it will be tight first and then loose, to avoid the core loose.
4.Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.
5.When raw material broken, the machine will stop automatically.
