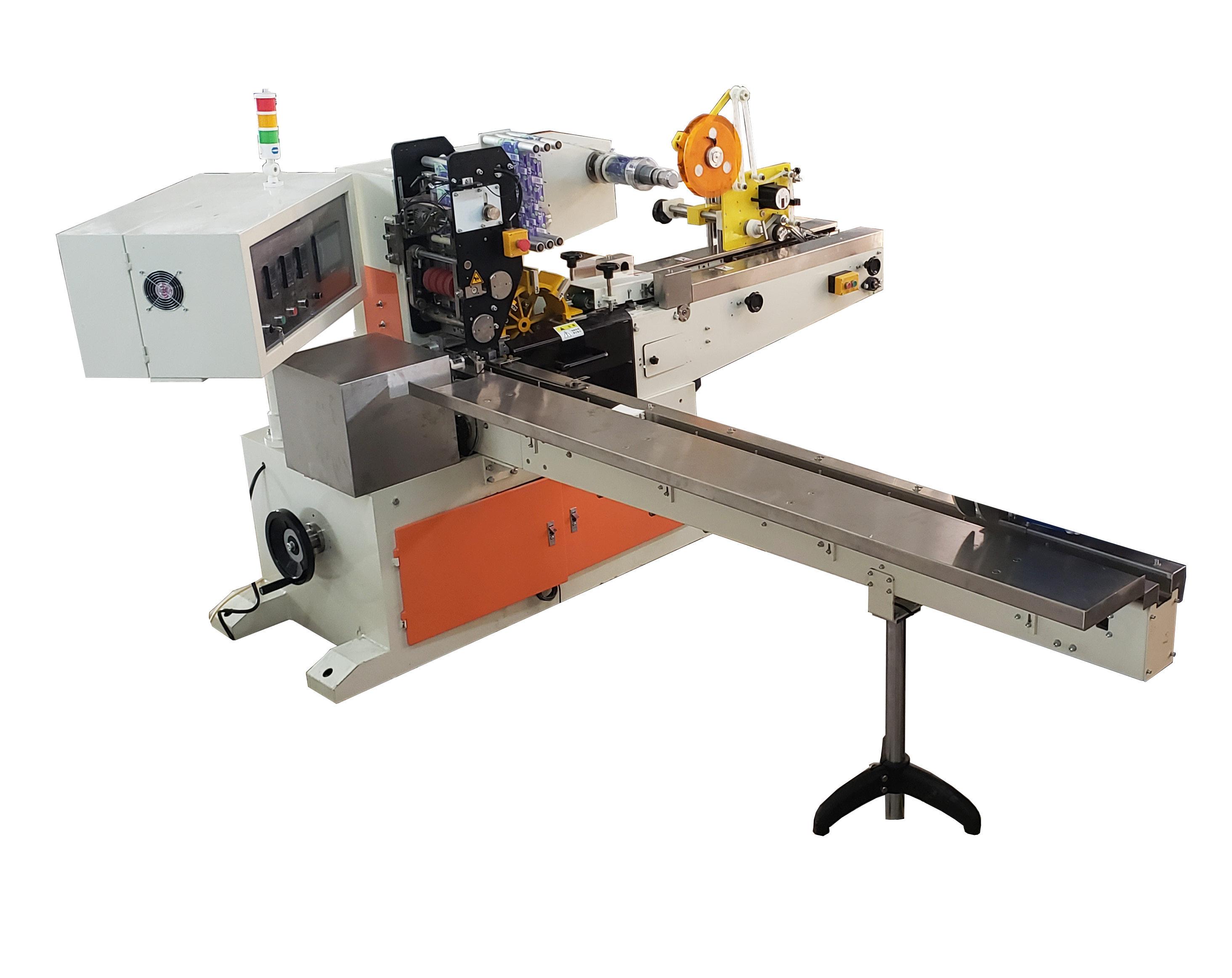

CIL-AS-201 Automatic Handkerchief Paper Packing Machine
1.Superior Performance: High speed, stable operation, and simple user control.
2.Advanced Control: Uses Mitsubishi PLC, touch screen, and centralized servo motor control.
3.Intelligent Monitoring: Integrated fault tracking and alarm system for quick troubleshooting.
4.Precise Tracking: High-precision Omron photoelectric tracking system.
- Overview
- Recommended Products
1. High speed, stable performance, simple operation.
2. Assembled machine is run by Mitsubishi programmable controller (PLC), with large touch screen and servo motor centralized control.
3. Integrated auto fault tracking and alarm system, displayed in real time on the touch screen, enabling quick fault location and timely troubleshooting.
4. High-precision Omron photoelectric tracking system.
5. Transmission adopts advanced frequency conversion controller, precise indexing by enclosed indexing case, with each station coordinated by accurate cam group indexing.
6. Automatic oil circulation lubrication system, greatly extending component service life.
7. Imported static elimination device for more stable packaging performance.
8. Imported intelligent temperature control system for flexible temperature adjustment.
9. Paper packaging film tear opening is automatically punched, with optional automatic punching devices for various opening shapes.
10. Production date, batch number, etc. can be auto-printed, with adjustable font and print position for optimal placement.
11. Outer packaging film tear openings are automatically glued synchronously, significantly reducing labor costs.
 |
 |
| Automatic Handkerchief Paper Packing Machine | Automatic Handkerchief Paper Packing Machine |
 |
|
| Automatic Handkerchief Paper Packing Machine | |
 |
 |
| Handkerchief Paper | Handkerchief Paper |
