CIL-NP-35 Industrial Napkin Packing Machine: ISO-Certified, 40% Faster Changeovers

1. This machine suitable for the packing of thin napkins and square tissues.

2. Adopt multi-function digital frequency control， PLC to make the control more advanced, easy to adjust and maintains。

3. Touch screen human-machine operation interface,easy to set the parameter.

4. Alarm automatically when there is no film, malfunction alarm display, to make operation and maintains easier and faster.

5. The control of length of film has been set with two model, one is the setting of length ,the other is color code tracking.

6. Main electric elements adopts international famous brand, the quality is more stable and reliable.

7. Vacuum film feeding system to make the feeding of film more smoothly and running more stable.

8. The machine can equip with coding unit and code printing unit.

9. Change the specification more easy and faster.

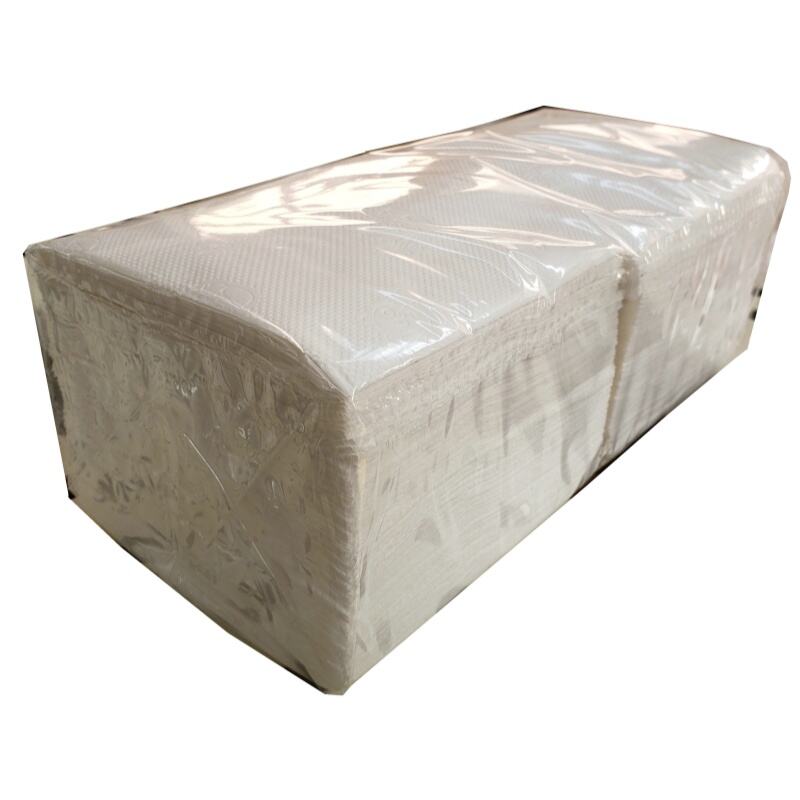

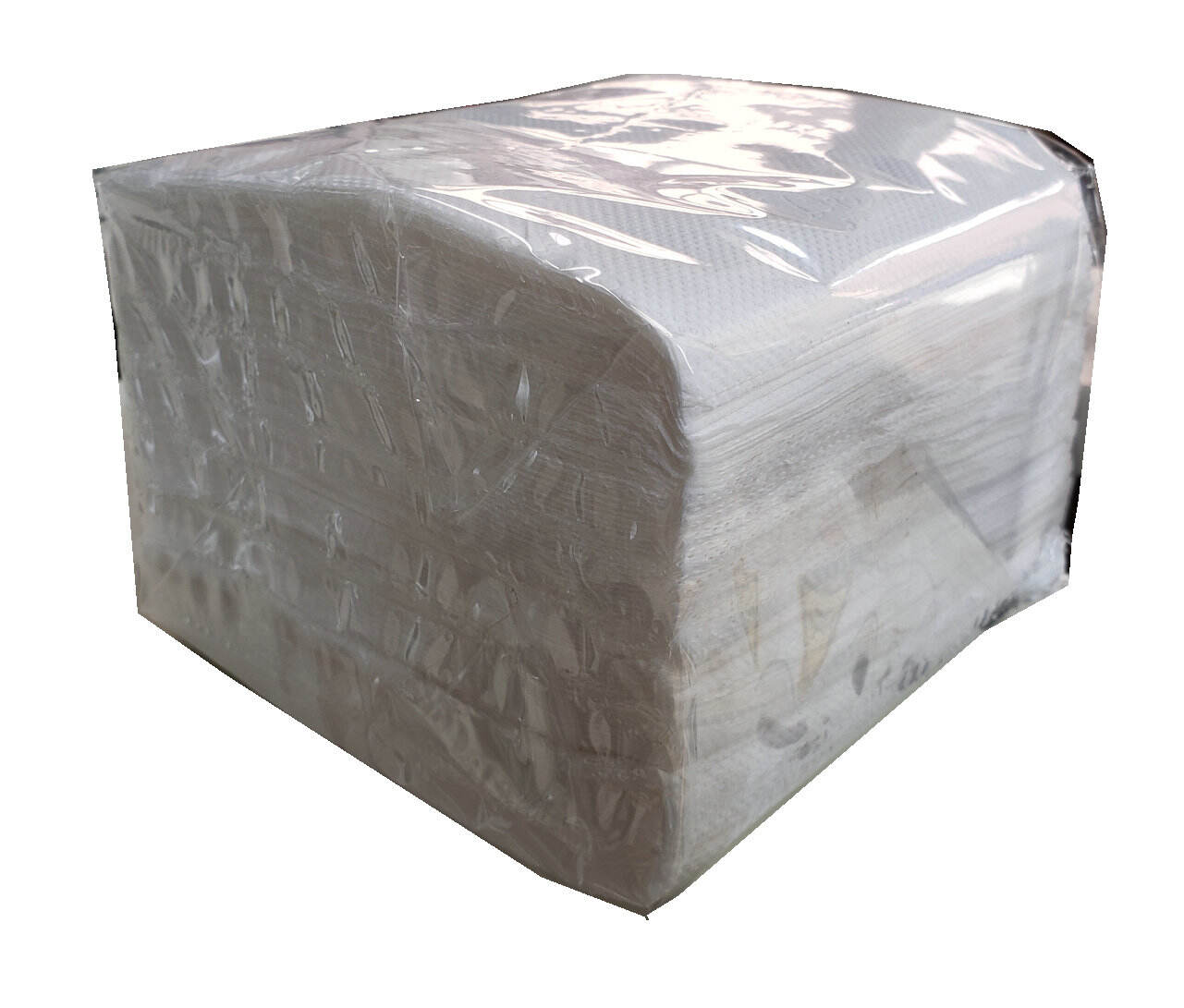

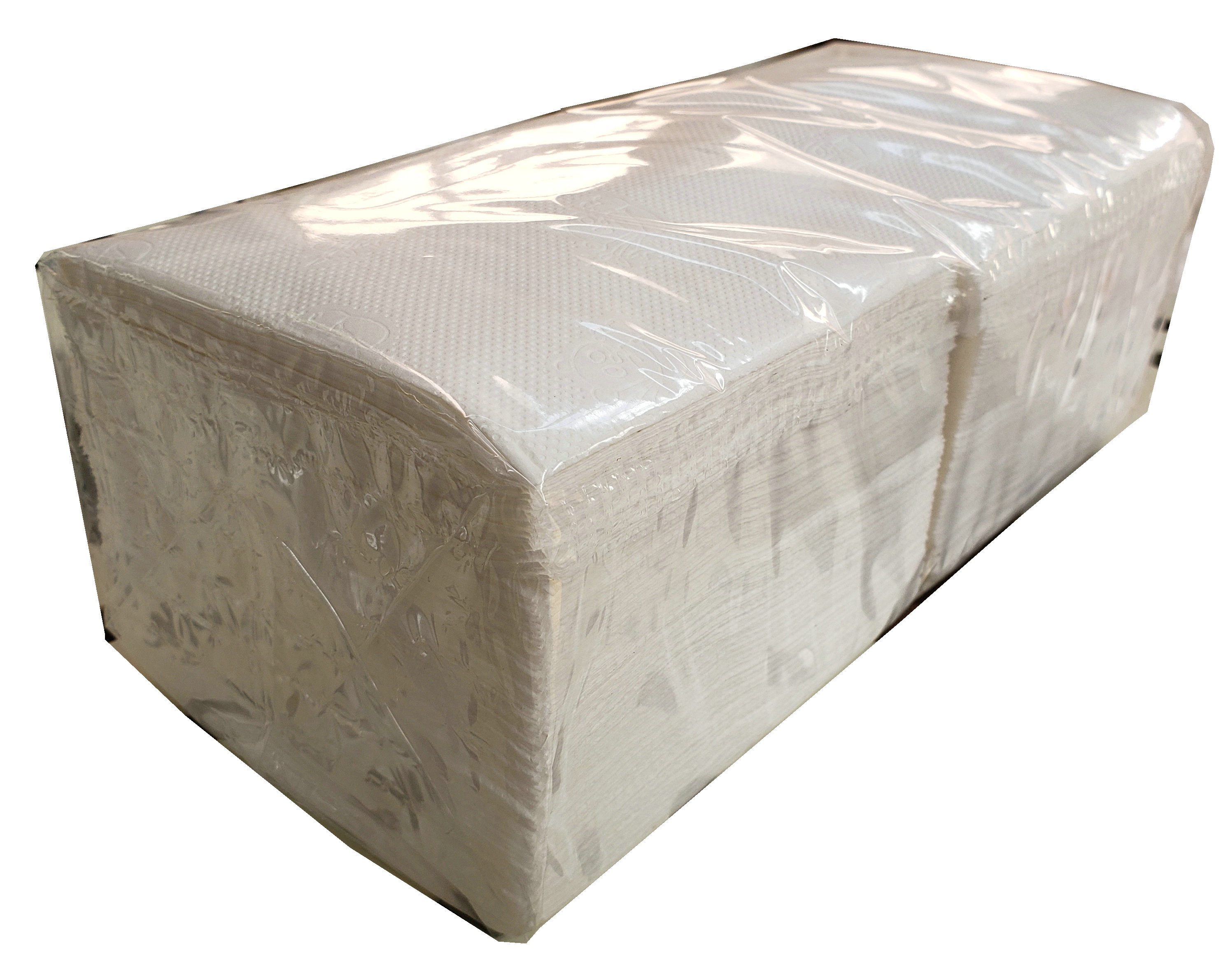

Napkin Paper	Napkin Paper

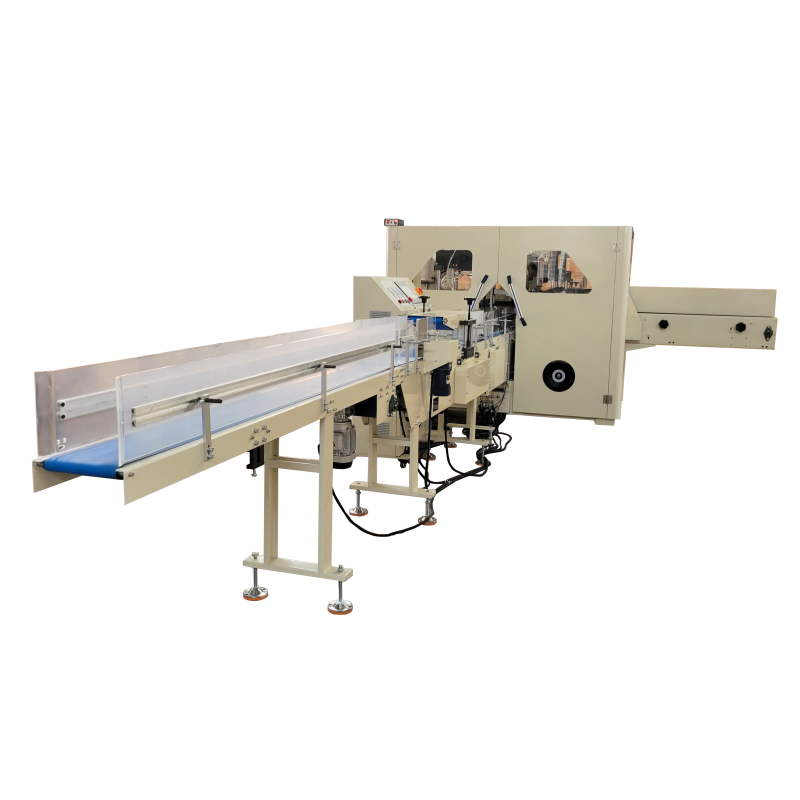

This machine suitable for the packing of printed napkin which thickness is more thin and corresponding size square tissue, also suitable for the transparent film three-dimensional outside packing of other square type of corresponding specification. This machine has the feature of tight structure, graceful outline, easy operation, convenient for maintenance, high degree autoimmunization and other advantages. This is a ideal automatic packing equipment for printed napkin paper. Also, it is the most advanced automatic napkin paper packing machine in domestic presently.

1. Packing Speed: 50–100 packages/min
2. Packing Range: L: 100–230 mm，W: 80–170 mm，H: 35–150 mm (Customer must specify the size)
3. Power Supply: 380V 50Hz
4. Power of Main Driving Motor: 0.75 kW
5. Heating Power: 3 kW
6. Total Power: 6.33 kW
7. Pressure Air: 0.6 MPa (Prepared by users)
8. Packing Material: CPP / OPP double-side hot sealing film，Thickness: 0.035–0.05 mm
9. Main Machine Overall Size (L×W×H): 2544 × 2600 × 2020 mm
10. Weight: 2000 kg
