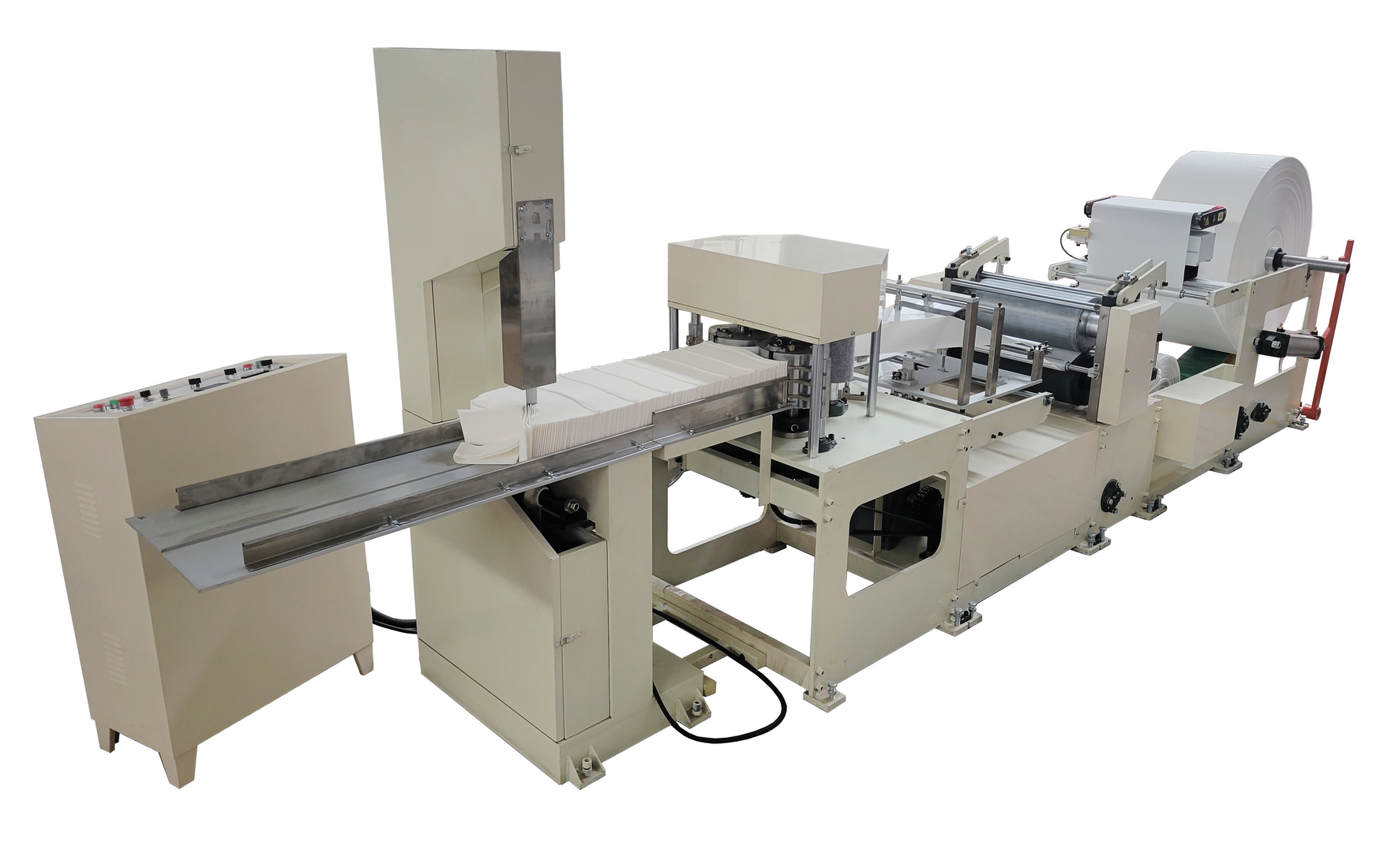

CIL-NP-7000C Full-Automatic Paper-Plastic Dental Pad Making Machine
1. Production Speed: 90–120 m/min
2. Machine Power: 4.5 kW (380V 50Hz)
3.Heating Power: 2.4 kW
4. Raw Material: Double layer toilet paper, plastic composite film (11 gsm/m²)
5.Toilet Paper Specification: 450 × Φ1200 mm, 16–20 gsm, 2 ply
6.Plastic Film Specification: 440 × Φ600 mm, 8–13 gsm, 1 ply
7. Final Product Opening Size: 330 mm × 450 mm
8.Folding Size: M folding 165 mm × 112.5 mm
(Other specifications and folding types, please specify when ordering)
9. Overall Size: 4.5 m × 1.2 m × 1.6 m
10. Equipment Weight: About 1.5 T
- Overview
- Main Technical Parameter
- Recommended Products
This machine is ideal equipment to produce disposable medical dental pads. The main driving system adopts frequency conversion control. The plastic film unreeling uses an auto tension system, and raw material feeding adopts infinite speed control. The embossing system is equipped with heating for auxiliary shaping and includes an auto rectifier. It realizes material lamination, embossing, folding, and final product output in a single machine process. It features a high degree of automation, high yield, easy operation, and labor savings.
1. Production Speed: 90–120 m/min
2. Machine Power: 4.5 kW (380V 50Hz)
3.Heating Power: 2.4 kW
4. Raw Material: Double layer toilet paper, plastic composite film (11 gsm/m²)
5.Toilet Paper Specification: 450 × Φ1200 mm, 16–20 gsm, 2 ply
6.Plastic Film Specification: 440 × Φ600 mm, 8–13 gsm, 1 ply
7. Final Product Opening Size: 330 mm × 450 mm
8.Folding Size: M folding 165 mm × 112.5 mm
(Other specifications and folding types, please specify when ordering)
9. Overall Size: 4.5 m × 1.2 m × 1.6 m
10. Equipment Weight: About 1.5 T
