CIL-NP-7000K250-500-4 High-Production Napkin Paper Machine
1.Diameter: 1200 mm
2.Width: 400–1320 mm
3.Thickness: 13–20 g/m² (2 layers) / 23–25 g/m² (1 layer)
4.Inner Diameter of Core: 76 mm
- Overview
- Specification of Raw Material

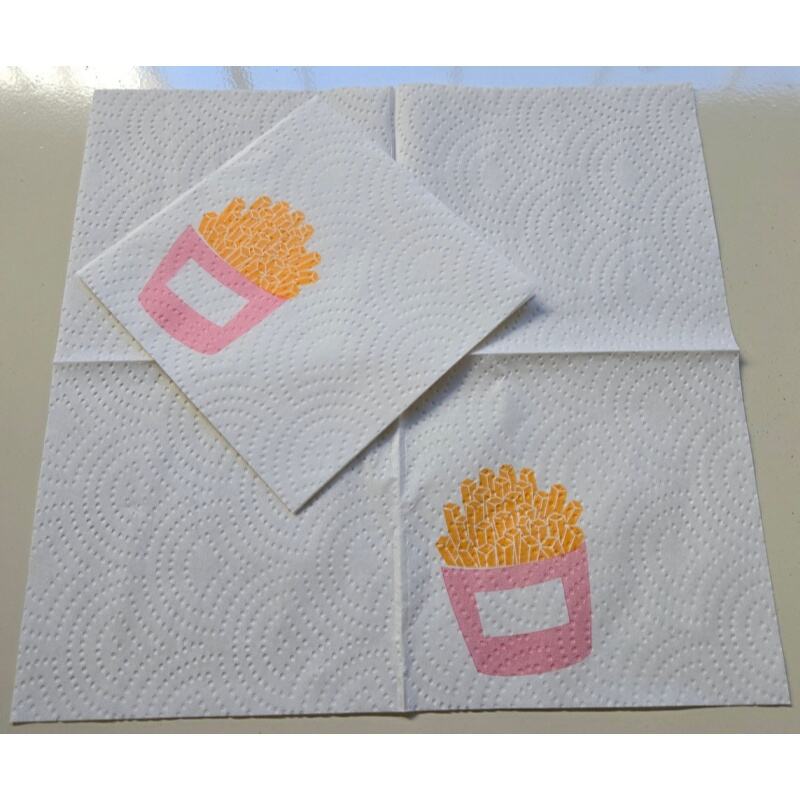

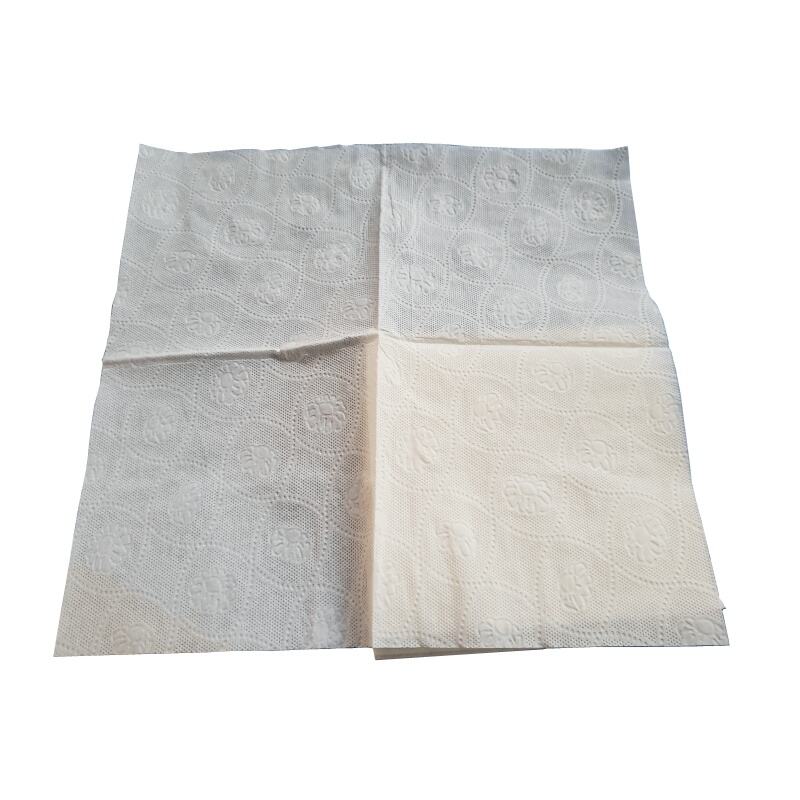

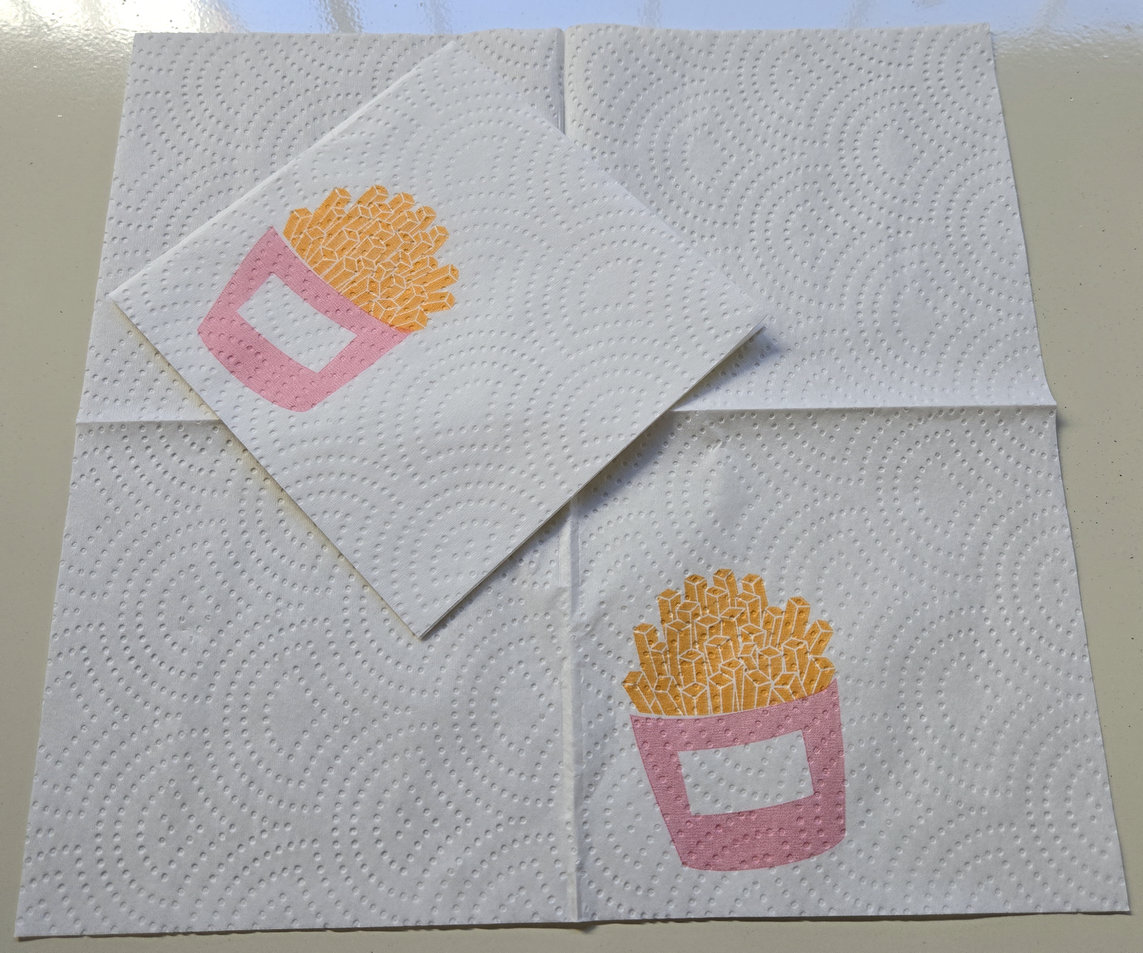

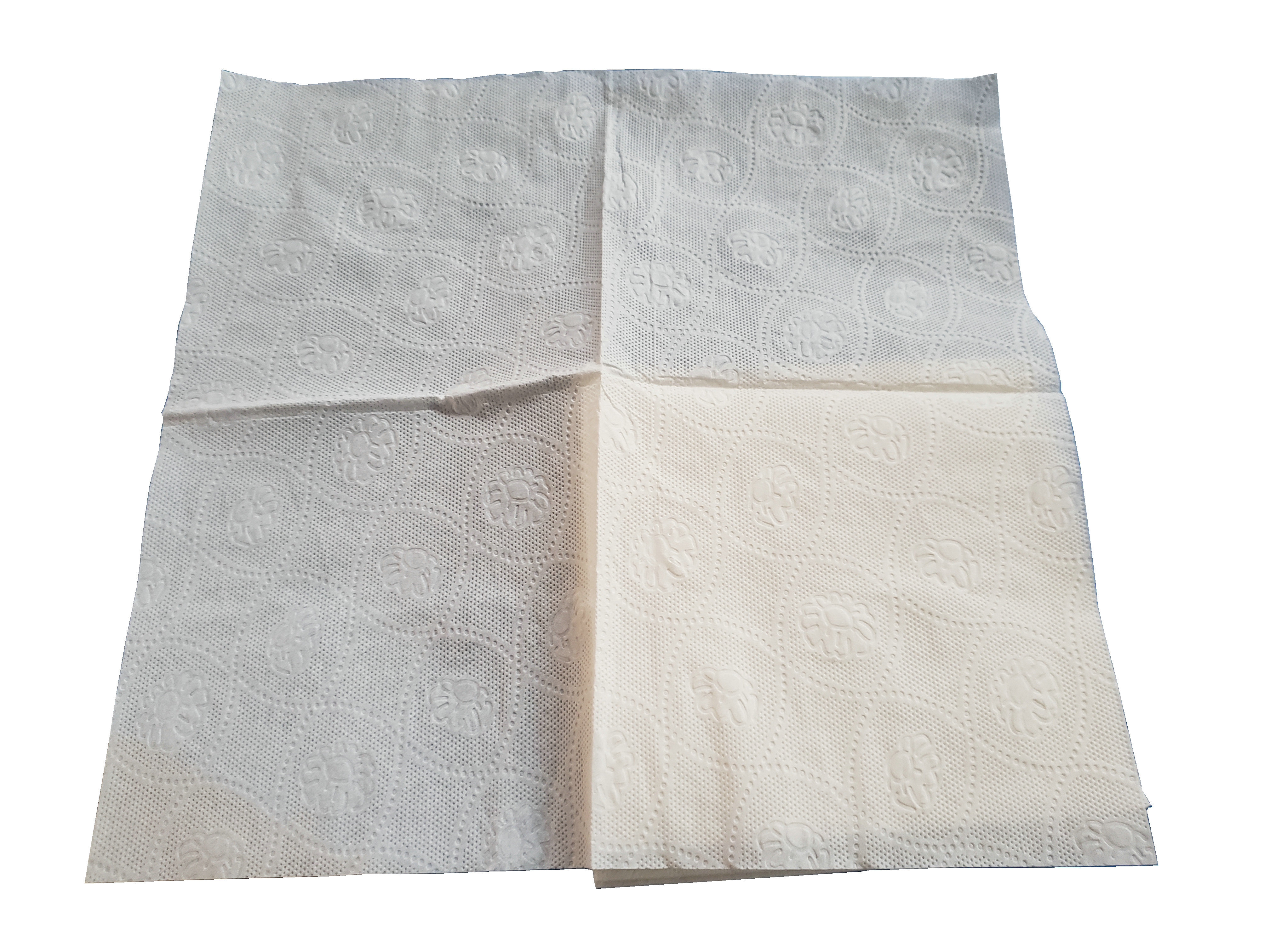

- Specification of Finished Product
- Equipment Disposition
- Recommended Products

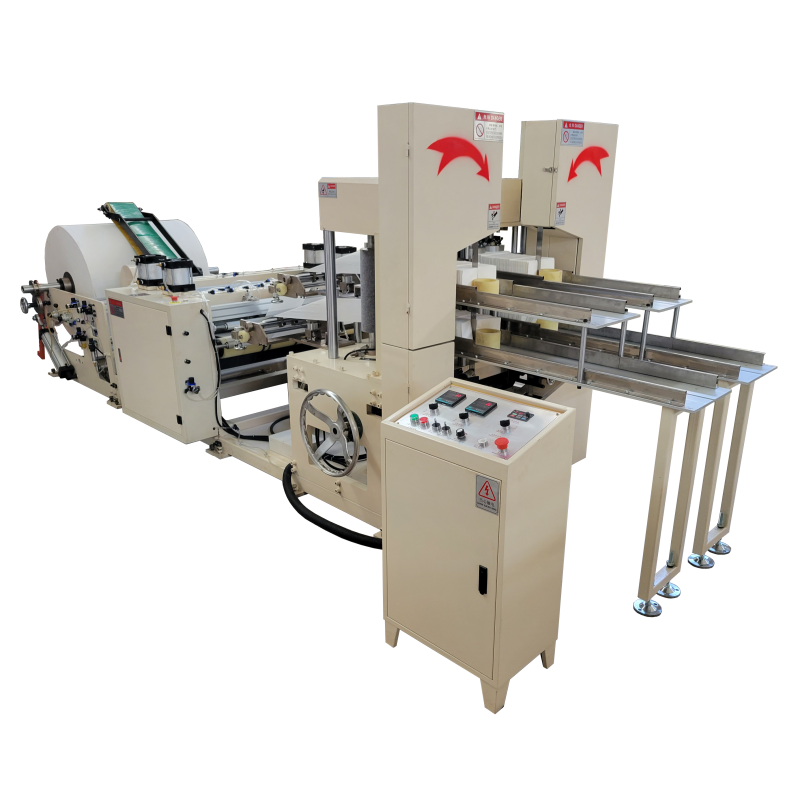

CIL-NP-7000K napkin paper machine series take round type jumbo roll as raw matieral, process to various kind of fixed specification napkin paper. The machine start from raw material feeding , embossment,folding and cutting. The come out product is 3 layers ,6 lines. Fast speed and high production. The napkin paper product by this machine is hygiene and clear.If you need to produce various kind specification of napkin paper (200 to 300), you need to order the machine. For example, if you order CIL-NP-7000K-275 napkin paper machine, the unfolding size of napkin paper is 270mmx275mm, while if you order CIL-NP-7000K-330, then the unfolding size of napkin paper is 330mmx330mm. Also, we can make the machine according to customers’ requirements.
 |
 |
| Napkin Paper | Napkin Paper |
1.Diameter: 1200 mm
2.Width: 400–1320 mm
3.Thickness: 13–20 g/m² (2 layers) / 23–25 g/m² (1 layer)
4.Inner Diameter of Core: 76 mm
1.Unfolding Size: 200–330 × 200–330 ± 2 mm (L × W)
2.Folding Size: 100–165 × 100–165 ± 2 mm (L × W, 1/4 folding
1. Pneumatic Lifter
2. One Paper Return Stand
3. Flat Belt (Controlled by Cylinder)
4. Hand-Wheel Adjust the Tension of Unreel
5. Vertical Slitting Unit
6. Steel Roller Against Wool Roller
7. 4 Sets of Folding Plate
8. Band Saw Slitting
9. Knife-Sharpening Unit
10. Individual Electrical Cabinet
11. Main Motor 5.5 kW Frequency-Converting (380V 50HZ) / Cutting Paper Power 2.2 kW
12. Emergency Stop
13. Stop Machine Automatically When Paper Broken
14. Stop Machine Automatically When Fault of Unreeling
15. Automatic Accounting (1–999)
16. Finished Product Comes Out with Finger
17. Production Speed: 3500–4000 Sheets/min
18. Required Power: 0.5 MPa (Prepared by Buyer)
