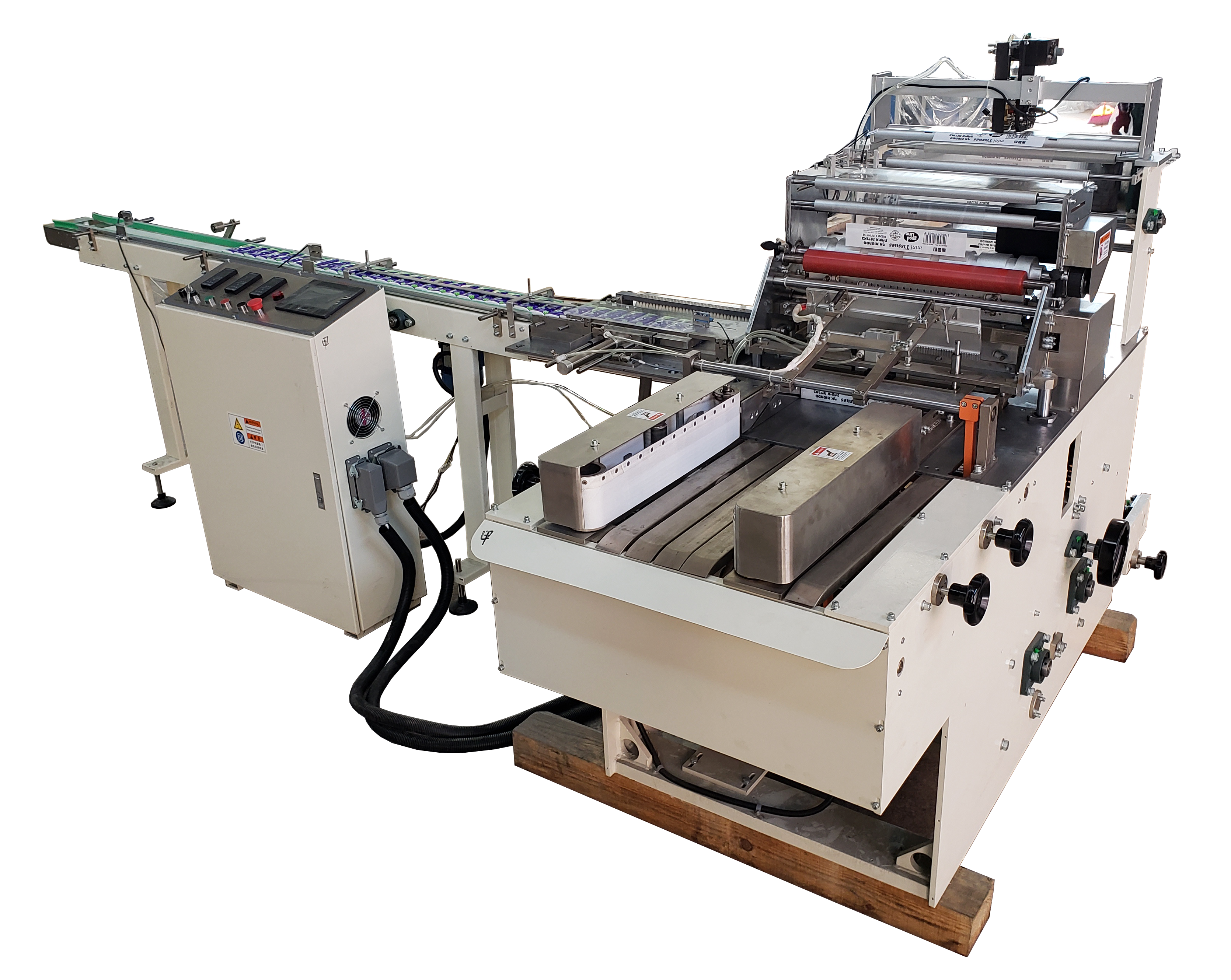

CIL-AS-301 Full-Automatic Handkerchief Tissue Multi-Bag Packing Machine
1. Machine Size (mm): 2500 (L) × 3200 (W) × 1550 (H)
2. Production Size (mm): (150–330) L × (70–150) W × (20–84) H
3. Speed (bags/min): 8–12
4. Power (kW): 3.5
5. Air Pressure (MPa): 0.5–0.6 (to be supplied by user)
6. Voltage (as ordered): 380V 50Hz (3-phase)
7. Machine Weight (kg): Approx. 1200
8. Packing Material: CPP, PE, etc.
- Overview
- Applicability
- Parameters
- Recommended Products
1. Adopts advanced control system with SIEMENS PLC programming and touch screen for setup.
2. Equipped with fault tracing and alarm system for easier troubleshooting.
3. Features intelligent feeding system to effectively enhance production efficiency.
4. Oil-filling lubrication system greatly extends the service life of machine components.
5. Intelligent temperature controller for flexible temperature adjustment.
6. Automatically prints production date with adjustable printing position (vertical and horizontal).
7. Adjustable feeding section allows flexible production of different-sized products.
Handkerchief Paper

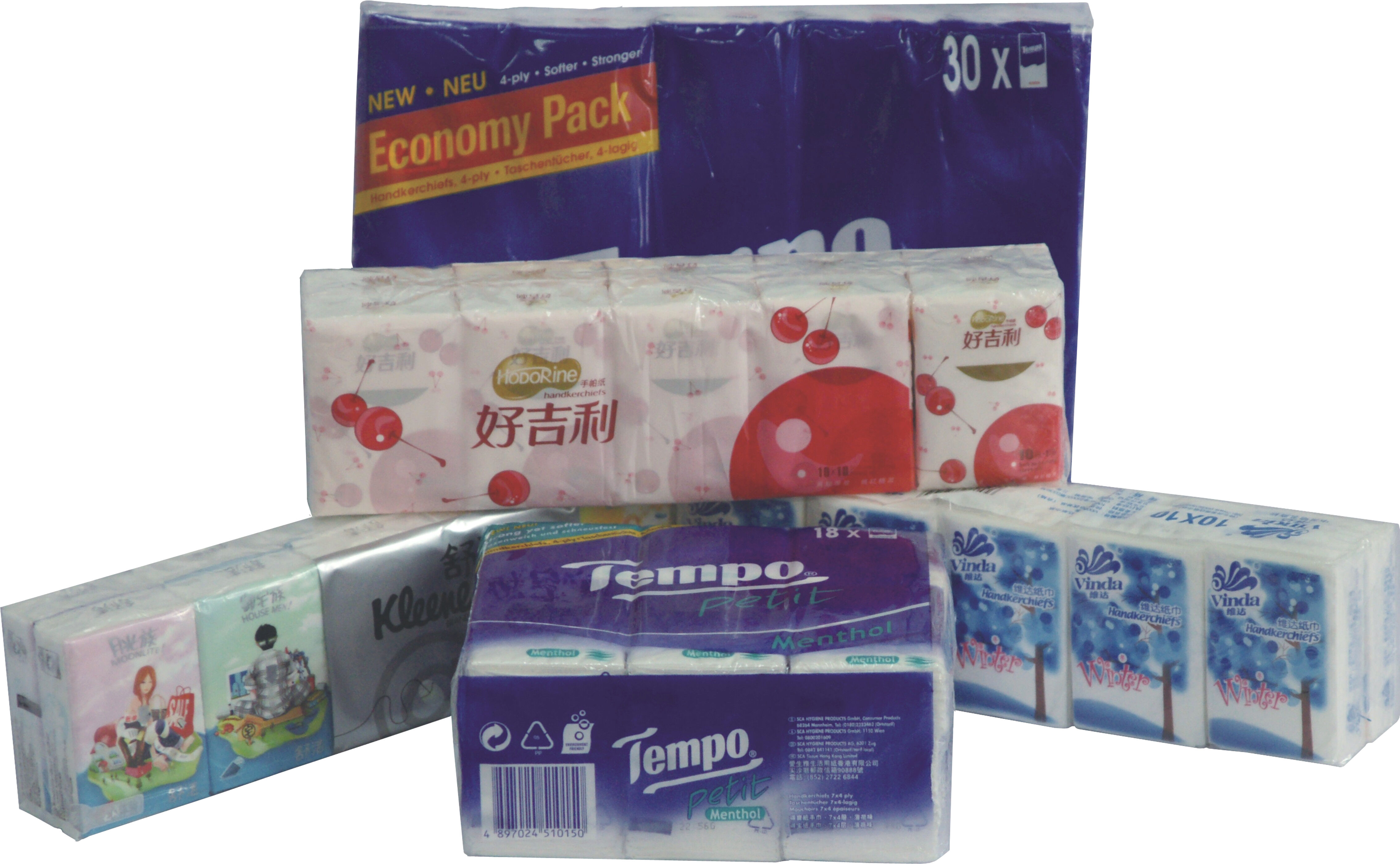

This machine is suitable for producing 10-in-1 pocket tissue packs.
Automatic 10-in-1 Single Channel Pocket Tissue Packing Machine
1. Machine Size (mm): 2500 (L) × 3200 (W) × 1550 (H)
2. Production Size (mm): (150–330) L × (70–150) W × (20–84) H
3. Speed (bags/min): 8–12
4. Power (kW): 3.5
5. Air Pressure (MPa): 0.5–0.6 (to be supplied by user)
6. Voltage (as ordered): 380V 50Hz (3-phase)
7. Machine Weight (kg): Approx. 1200
8. Packing Material: CPP, PE, etc.
