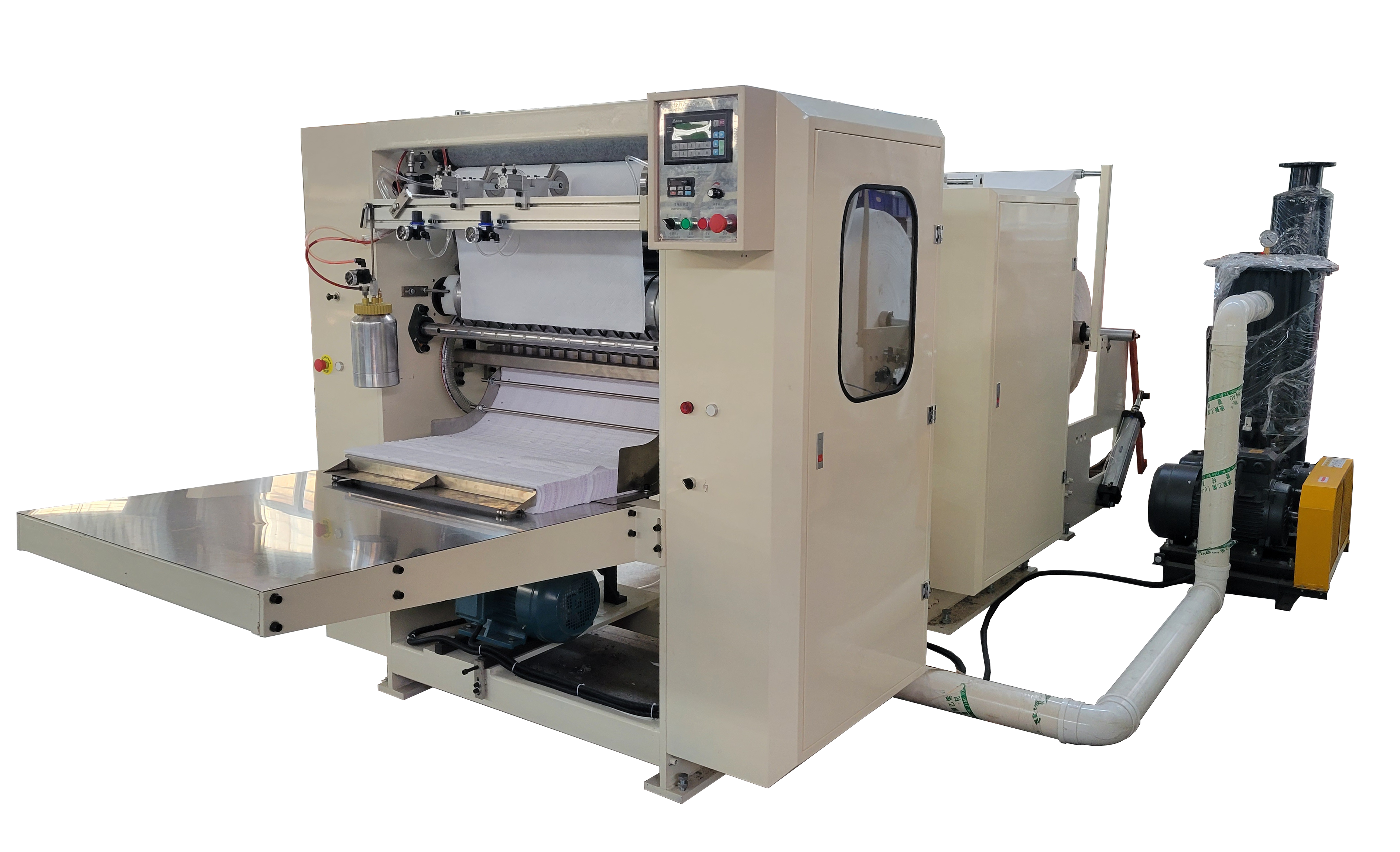

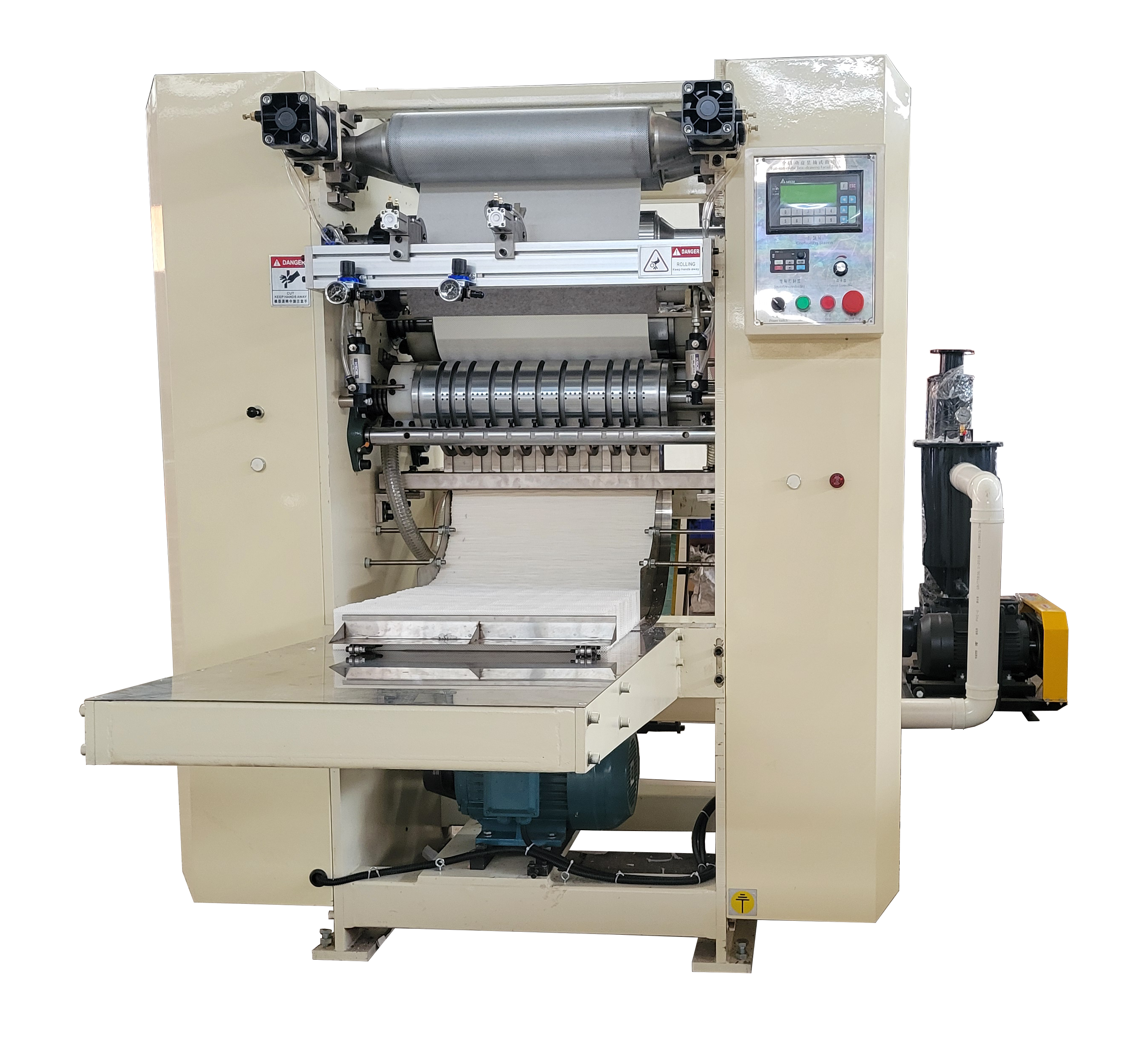

CIL-AS-288 Automatic N & Z folding Towels paper Machine
1.Production Speed: 60~100 m/min
2.Range of raw material:33-47g/m2(single layer)
3.power: 10.5Kw (380V 50Hz)
4.Overall size (m): 4.1×1.8×2.1(L×W×H )
5.Weight: about 3.5T
- Overview
- Function and Features
- Main Technical Parameter
- Standard Size
- Recommended Products

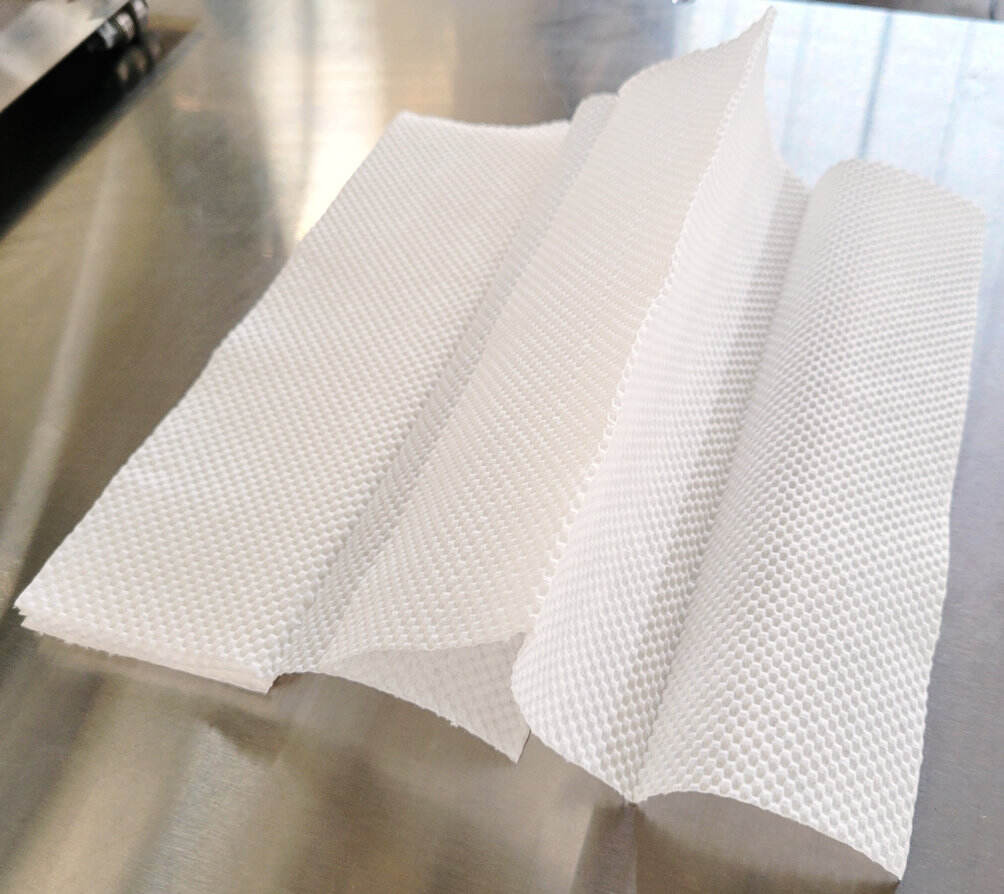

The machine embossing and cutting off the towel paper.The folding of product is “N” type folding and you can draw it one by one.This kind of towel paper is used widely in hotel, office and kitchen etc, that is convenient and sanitation. We adopt original creation full vacuum absorption technology, the adaptability of raw material is so strong.The folding, cutting,counting etc several processes are going together.
1.Count automatically and output in order.
2.Adopt screw turning knife to cut and vacuum absorption to fold.
3.Adopt step-less adjusting speed to roll which may fix different tension of raw paper.
4.Control pneumatic with electric convenient to operate.
5.Equip with steel to steel embossing unit , embossment is clear.
6. Have a wide range of production width for user to sale conveniently.
7.The machine can equip with PLC according to requirement.
We can make the machine with 2lines, 3 lines ,4 lines, 5 lines，6 lines，7 lines and 8 lines according to customers’ requirement.
 |
 |
| V-folded Towel Paper | V-folded Towel Paper |
1.Production Speed: 60~100 m/min
2.Range of raw material:33-47g/m2(single layer)
3.power: 10.5Kw (380V 50Hz)
4.Overall size (m): 4.1×1.8×2.1(L×W×H )
5.Weight: about 3.5T
1.Size of open:220X220MM
2.Size of fold: 73.3X220MM
