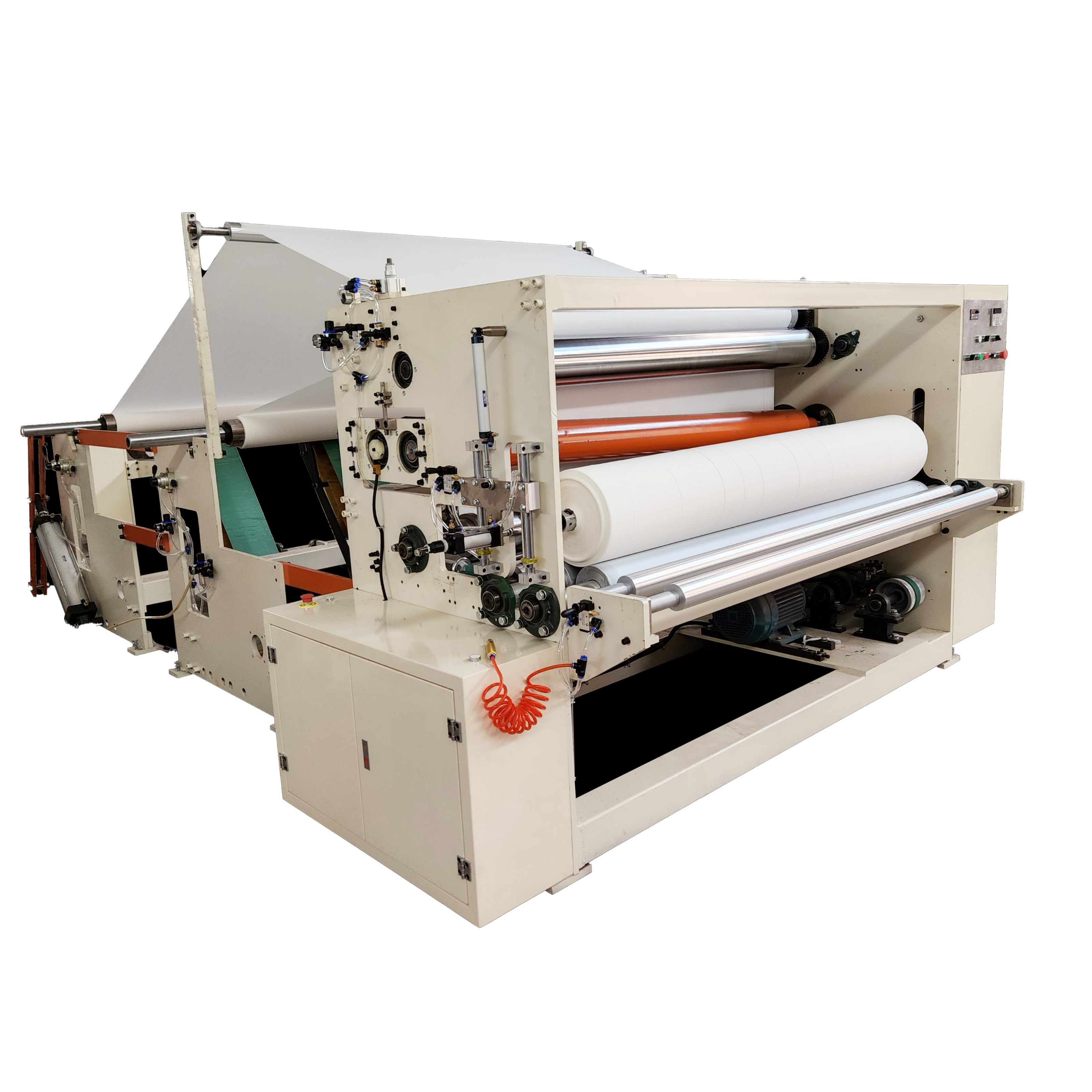

CIL-WW-C Small Bobbin Embossing Perforated Slitting Machine

1.Versatile Processing: Integrates embossing, perforation, slitting, and rewinding in one operation.

2.Efficient Handling: Features pneumatic roll lifting, feeding, and individual tension control for bobbins.

3.Customizable Printing: Can be equipped with single or double-color printing devices as required.

4.Easy Setup: Uses air shafts for reeling, facilitating convenient paper pipe positioning.

Overview
Main character
Technical parameter
Recommended Products

This equipment produce small raw material and towel roll. This machine equipped with pneumatic jumbo roll lifter , pneumatic belt driving, tension adjustment and so on. Adopt air-shaft for reeling.

1.Adopt air-shaft for reeling, convenient to set the position of paper pipe.
2.Possess the function of embossment, perforation, slitting and rewinding, which can be finsihed at one time.
3.Pneumatic jumbo roll lifter, pneumatic flat belt feeding, each bobbin has individual tension adjusting device.
4.As required, the equipment can have single color or double color printing device.
5.As required, add trim spray glue sealing function.(cutomer has to order)

Model	1092C	1575C	2000C	2200C	2400C	2600C	2800C
Width of raw material	1330	1750	1950	2150	2350	2550	2760
Dia. of finished product (mm)	Φ90～300 （the tension can be adjustable ）
Dia. of base paper (mm)	Φ1200(please point other specification)
Inner dia. of core of base paper	76.2 mm (please point other specification)
Distance of perforation (mm)	90~160mm
Processing of capacity	100～150m/m
Reeling	Air shaft
Embossment	Single side embossment，double sides embossment ，steel to steel embossment (according to requirement)
Bottom roller of embossment	Felt roller, wool roller, glue roller.
Unreel stand	1-3 layer （please point the number of layers）
Pneumatic system	3 air compressor，Min.pressure 5kg/cm2 Pa(prepare by customers)
Power	4.5-11 kw
Overall size (mm) (L×W×H)	6200x2600x1800～6200x4000x1800 mm
