CIL-WW-A Jumbo Roll Cutting And Rewinding Machine

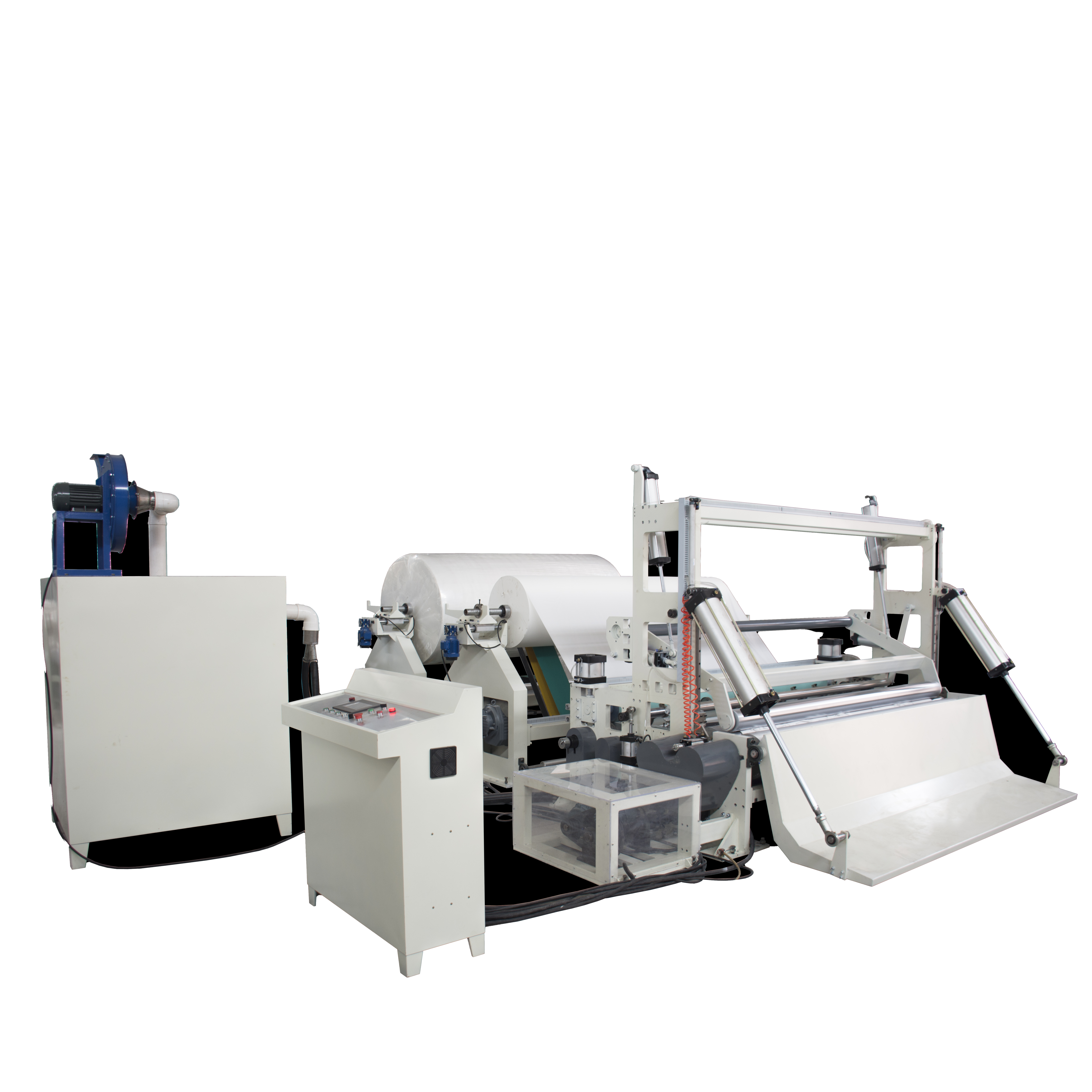

The CIL-WW-A Automatic Cutting and Rewinding Machine efficiently processes toilet paper, non-woven, and dust-free paper. It rewinds and cuts jumbo rolls from single to 2-4 layers for various tissue products. Featuring a compact design, easy operation, and stable performance, it is the ideal equipment for paper manufacturing and processing factories.

Overview
Recommended Products

CIL-WW-A Automatic cutting and rewinding machine mainly used to cut and rewind toilet paper, no-woven and dust-free paper. This equipment rewind and cut the paper to 2 layers, 3 layers or 4 layers other specification jumbo roll from single layer. Supply for folding tissue ,napkin , boxed tissue , toilet paper and so on. This equipment has the feature of tight structure, easy operation, stable operation, which is the ideal equipment to fund paper-making factory and paper processing factory.

CIL-WW-A
Model	1575	2000	2200	2400	2600	2800	3000	3200
Width of raw material	1800	2000	2200	2400	2600	2800	3000	3200
Diameter of finished product(mm) : ≤Φ1500
Width of slitting(mm) : 200/300/400mm etc..(Adjustable)
Dia. of raw material : ≤Φ1600
Inner dia.of core of raw material	76.2(other specifications can be pointed by customers)
Speed	200-330M/min
Return paper stand	1-3 layers（please point the number of layer）
Calenderer	Steel to steel , steel to glue roller (need to order)
Pneumatic system	3P Air compressor ，Minx pressure :5kg/cm2 Pa(prepare by customer)
Power	12.2-22KW
Overall size (mm) : 6200x2600x1800～6200x4000x1800
Weight of equipment :5500-9000 kg
reeling	No-core reeling
Driving system	Frequency control
