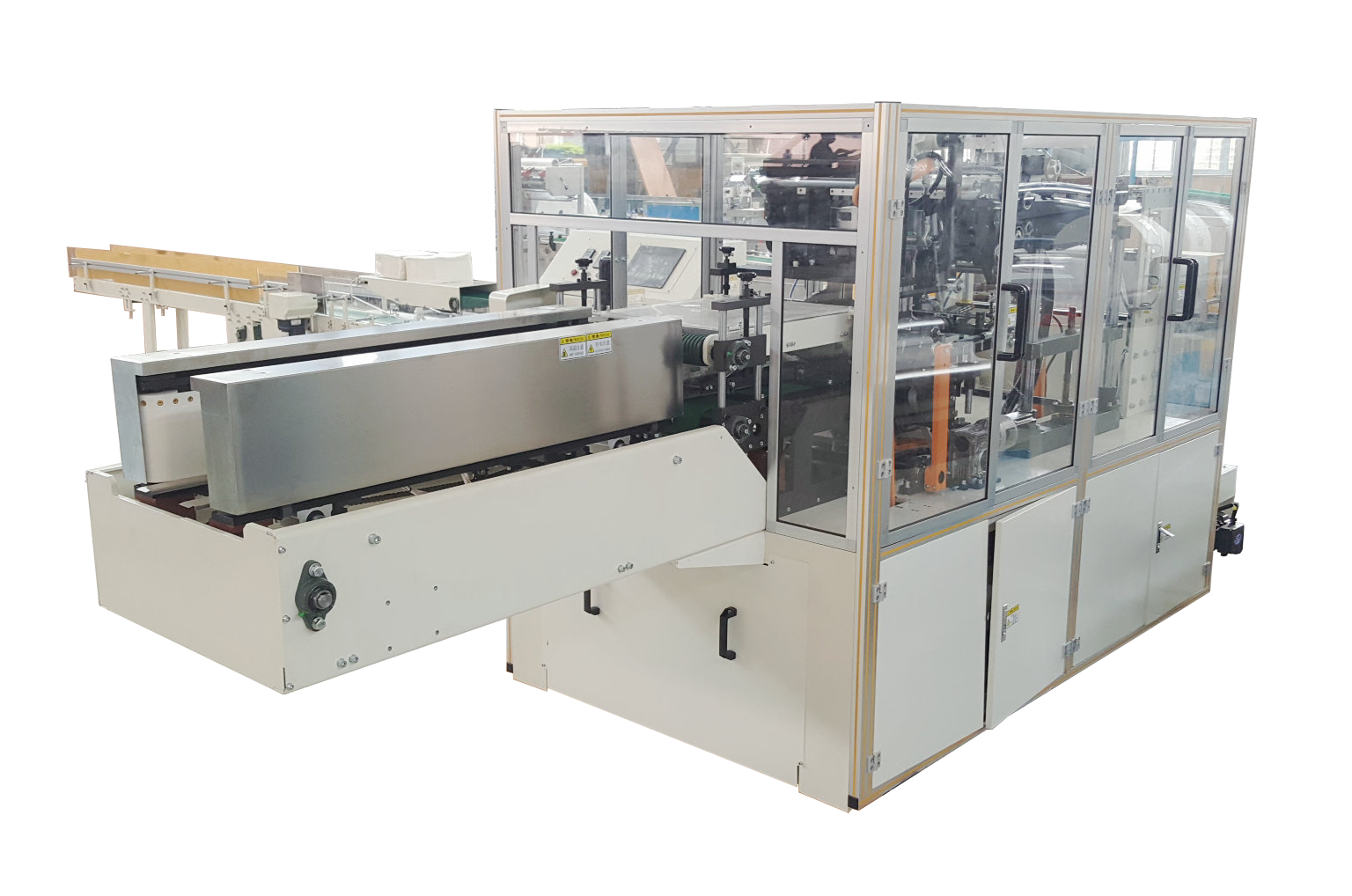

CIL-FT-602 High Speed Automatic Soft Bag Facial Tissue Packing Machine
Machine speed: 70-100 bags/min
Steady speed: 70-100bags/min
Total Power: 9.2Kw, 380V, 50Hz
Packing material: double-sided heat sealing membrane such as CPP, PE and so on (CPP is better)
Programming control: PLC (SIEMENS)
Air pressure: 0.5-0.6Mpa (user supplied)
- Overview
- Main Technical Parameter
- Recommended Products
1. Adopt packing way by wrapping, hemming and sealing with compact structure.
2.Adopt the system of step-less frequency conversion controlling, touching screen and PLC control system, man-computer interface display more clear and easy to maintain.
3.Adopt auto-putting conveyor, easy to be connected with automatic production line, saving much laboring cost, convenient for production.
4.Twin-frequency stepless speed regulation, packing speed and the length of bag can be changed discretionarily.
5. High degree of automation, high specialization, high production efficient and low malfunction.
6. Packing range is big, different specification and be converted.
Size of finished product: Customer selection
Machine speed: 70-100 bags/min
Steady speed: 70-100bags/min
Total Power: 9.2Kw, 380V, 50Hz
Packing material: double-sided heat sealing membrane such as CPP, PE and so on (CPP is better)
Programming control: PLC (SIEMENS)
Air pressure: 0.5-0.6Mpa (user supplied)
Parameter setting: Touch screen (SIEMENS)
Servo Motor: 1.5Kw, 380V, 50Hz (SIEMENS)
Machine size: 3.56*6.05*1.95m (L*W*H)
Machine weight: 2.5T
Packing material to delivery : wooden case
Percent of bad packing: (0-1)/100bags
