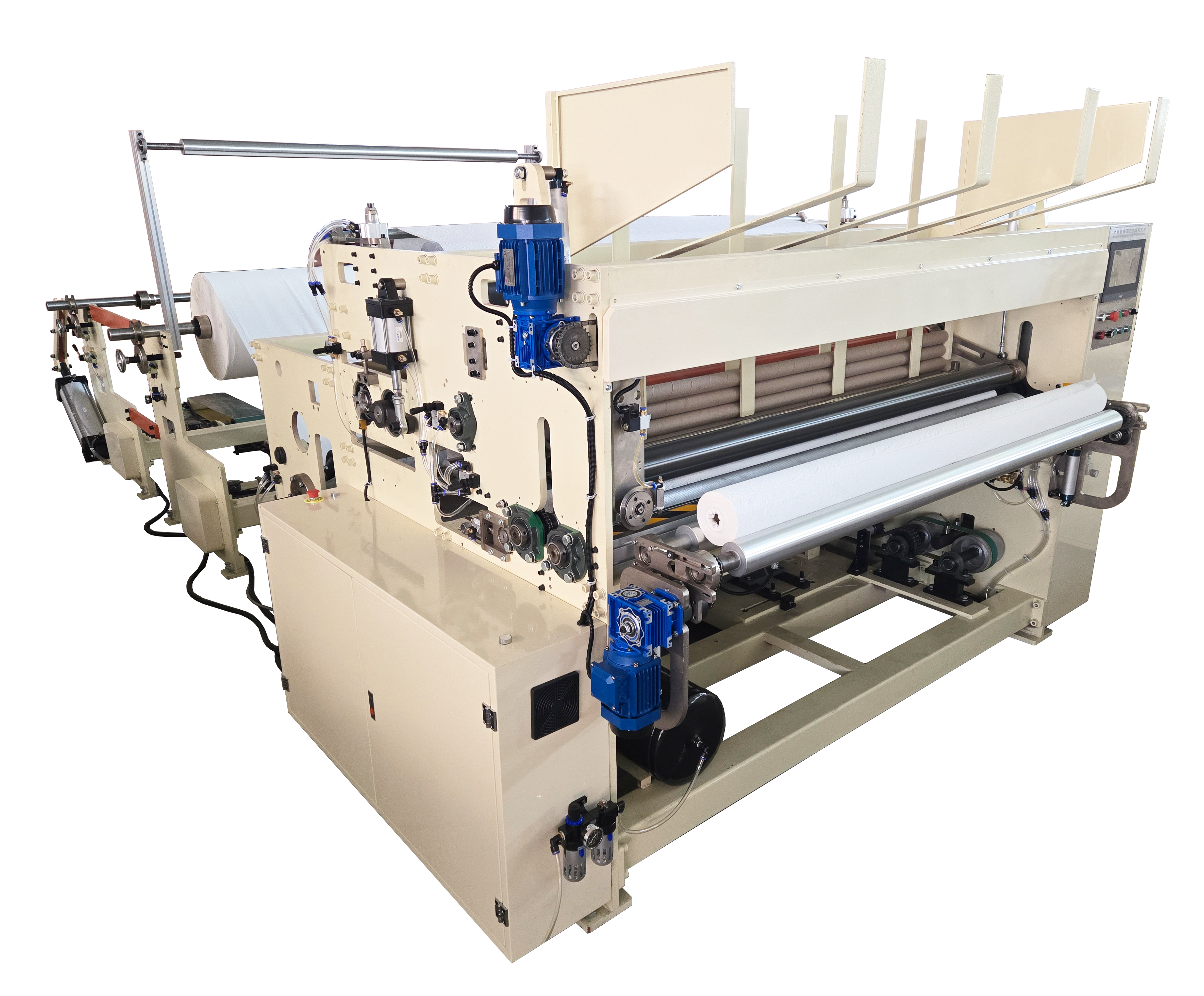

CIL-SP-B Full-Automatic High-Speed Rewinding and Perforated Toilet Paper Machine
1.rewinding speed:180-250m/min
2.Diameter of finished product :￠80-￠300mm
3.Punching line distance:90/120/150/200/250mm（adjustable)
4.Power:11-30Kw (380V 50Hz 3 phase)
5.Weight:About 3000-10000kg
- Overview
- Features
- Technical data
- Optional equipment
- Specification of raw paper
- Recommended Products
CIL-SP-B this equipment is to perforate and cut the raw paper into various sizes according to the requested. The finished product is neat, in good order and with equality tension. It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 180-250m/min. This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory.
This equipment can process raw paper of 1.2m, 1.8m, 2.0m, 2.2m, 2.4m, 2.6m, 2.8m, 3.m, 3.02m etc in width. There are two types of this model: one is ordinary type, it used one embossed unit for 2 ply paper, and the other is dot-by-dot type, it used embossed units respectally for each one.
This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system. The production process is : unreeling —→ embossing —→perforating—→furl—→slitting.
 |
 |

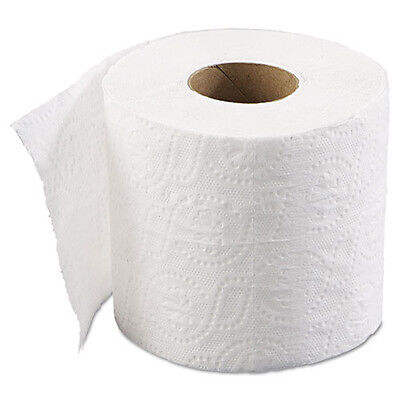

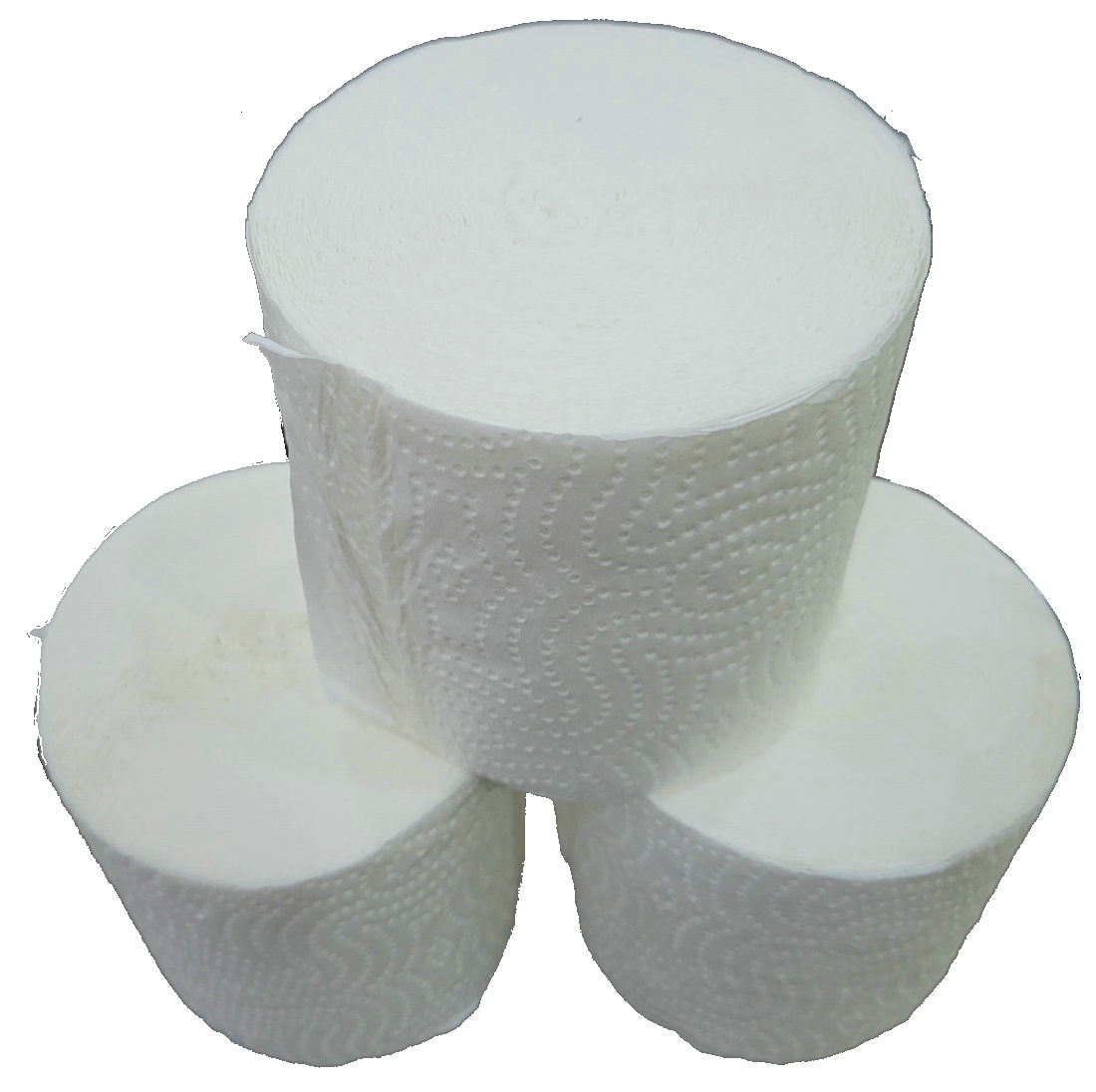

| Coreless | Paper Core |
1.This model is designed with computer control system, fully automatic in production process, the function is complete and the production speed is high.
2.It can automatically change the core, spray the glue and seals without stopping the machine and also automatically raise and lower speed when exchanging the core.
3.When change the core, the machine will be tight first and loosen later to avoid dropping off the roll core.
4.Equipped with automatic alarm to indicate filling up of core pipe. The machine will be automatically stopped when there is no core pipes.
5.Automatic alarm for breaking off of paper.
6.Equipped separate tension control for each unwinding jumbo roll.
7.It is convenient to change the feature to produce any other core pipe winding.
8.Left paper remind after sealing of product for convenient use.
9.Jumbo roll stand is installed by pneumatic.
1.rewinding speed:180-250m/min
2.Diameter of finished product :￠80-￠300mm
3.Punching line distance:90/120/150/200/250mm（adjustable)
4.Power:11-30Kw (380V 50Hz 3 phase)
5.Weight:About 3000-10000kg
1.Two embossing units can be equipped with 3 laying paper stand.
2.To equip three embossing units and three paper stands to have two shapes of embossing designs.
3.We can design the machine that suitable to process raw material 2.2M or 2.6 M width
4.Single or double printing units.
The embossing pattern can be supplied by customers.
It uses this kind of paper (1.2m in width, 2 ply, 18g) can produce 56 rolls of 120g per minute. Every hour can produce 3150 rolls. 8 hours can produce 26880 rolls. It can process 3.3 tons paper.
Length can be adjustable and also can produce according to the customers’ request.
It uses this kind of paper (1.75m in width, 2 ply, 18g) can produce 80 rolls of 120g per minute. Every hour can produce 4500 rolls. 8 hours can produce 38400 rolls. It can process 4.6 tons paper.
Length can be adjustable and also can produce according to the customers’ request.
1.Width of raw paper:1200-3200MM
2.Diameter of raw paper:700mm-1000mm
3.Thickness of raw paper:14g/,m２-20g/ m２
4.Diameter of paper core:76mm or specify
